◎Pressure structure sensor has the characteristics of low installation height and small deformation;
◎It is suitable for force measurement of screws and rods, force measurement in various small spaces, and force detection and control equipment in industrial and R & D fields.

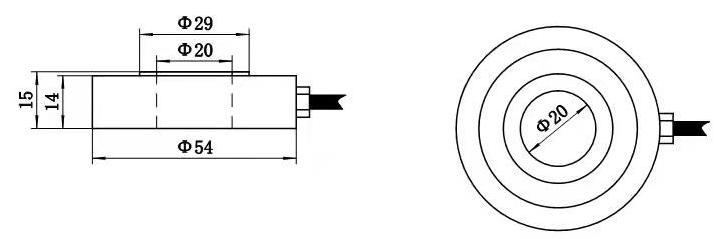

Dimension:
Technical Parameter:
Capacity
50kg～3000kg
Temp.Effect on Zero
≤±0.05％F·S/10℃
Zero Balance
≤±1%F.S
Operating Temp.Range
-20℃～+60℃
Sensitivity
1.0～2.0mV/V
Input Resistance
380±30Ω/730±30Ω
Nonlinear
≤±0.5%F.S
Output Resistance
350±2Ω/700±3Ω
Lagging
≤±0.5%F.S
Insulation Resistance
≥5000MΩ/100VDC
Repeatability
≤±0.5%F.S
Safe Overload
120％F·S
Creep
≤±0.5%F.S/30min
Excitation,Recommended
5～12VDC(10VDC)
Temp.Effect on Output
≤±0.05％F·S/10℃
Material
Alloy/stainless steel
Product name
LC6001 Silo Weighing & Bolt on Weighing Bolt Tension Load Cell 50kg To 3000kg
Brand
SAINTBOND
Market
All over the world
Features
High precision and stable performance
Advantage
0EM/ODM
Sample Lead Time
5~ 40Days
Sample price
The price is different according to product capacity
