Load pins are widely used for overload protection in hoisting equipment,mooring devices, winches, coupling devices, construction machinery, etc.They are interchangeable with shaft pins,thus can be easily integrated into existing system and get measuring job done. Custom design service makes sure our load pins will fit your applications perfectly.

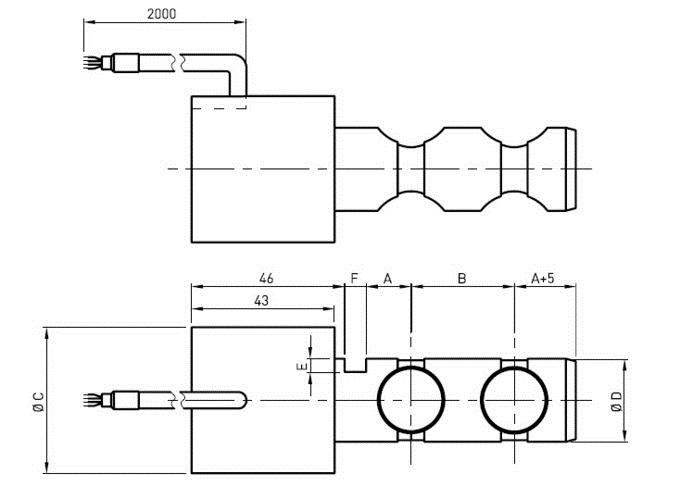

Dimensions：Unit:mm
Cap.(t)
A
B
Dia.C
Dia.D
E
F
0.5/1/2
13.5
31
44
25
4.5
6.5
3/5
18
47
44
35
6
6.5
10
27
66
50
50
7
8.5
20
32.5
90
65
65
9.5
8.5
30
40
100
75
75
10.5
10.5
50
49
117
85
85
12.5
10.5
Technical Parameter:
Rated Load:
0.5~50t
Operating Temp.Range:
-30~+70℃
Sensitivity:
(1.0±0.1%) m V/V
Maximum Safe Over Load:
150%F.S
Combined Error:
±0.5% F.S
Ultimate Over Load:
400%F.S
Creep Error(30min):
±0.05% F.S
Recommend Excitation Vol.:
10~12V DC
Zero Balance:
±1% F.S
Maximum Excitation Vol.:
15V DC
Temp. Effect On Zero:
±0.05% F.S/10℃
Sealing Class:
IP67
Temp. Effect On Span:
±0.05% F.S/10℃
Element Material:
Alloy / Stainless Steel
Input Resistance:
400Ω±20Ω
Cable:
Length=L:5m~16m
Output Resistance:
350Ω±3Ω
Citation:
GB/T7551-2008/ OIML R60
Insulation Resistance:
≥5000MΩ
Mode Of Connection:
Red(Input+),Green(Output+),
Black(Input-),White(Output-)
Note:load cells are available with optional 0~5Vdc to 0~10Vdc or 4 mA to 20 mA output.
Product name

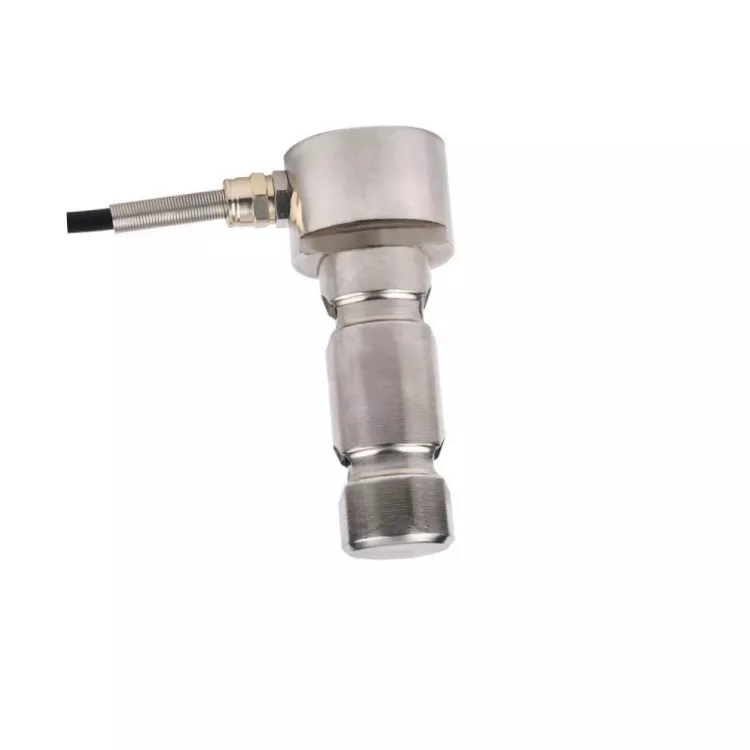

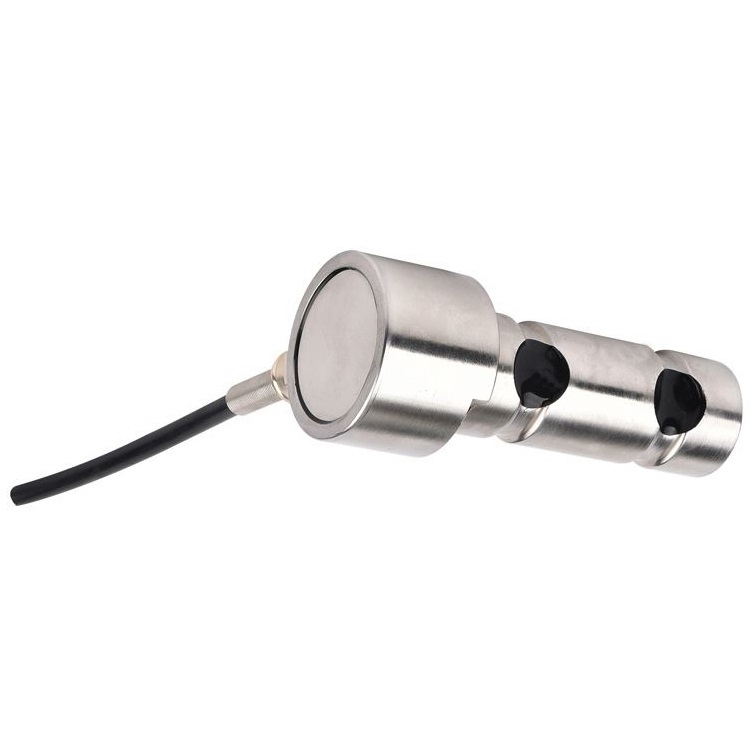

LC771 Load Pin Application Load Pin Cell Application for Pulleys
