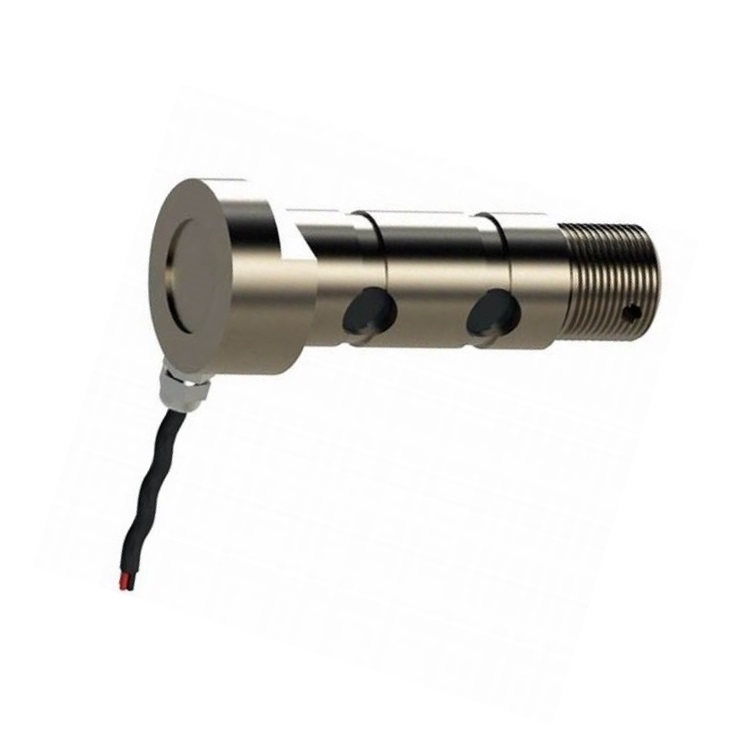

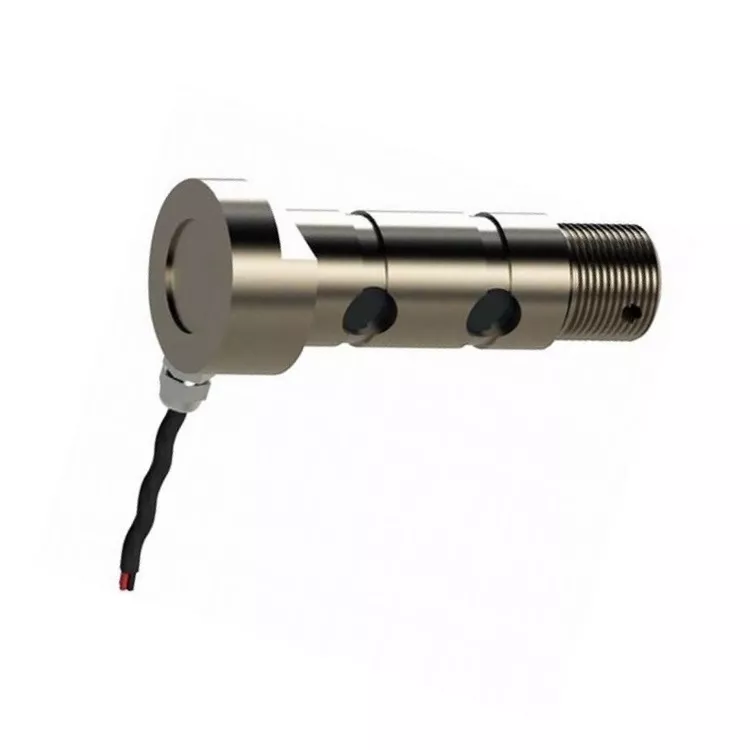

LC772 Load Pin is a high accuracy cylindrical shape stainless steel or alloy steel double shear beam load cell,applications in crane scale,conveyors,high capacity storage bins and mobile weighing. Production of desired sizes and capacity,Standart Output is mV/V , Option:4-20mA ,0-10V , RS485 output and Wireless Load Pin and force sensor measurement systems manufactured are renowned for measurement that achieves high accuracy, and is safe, reliable and stable.

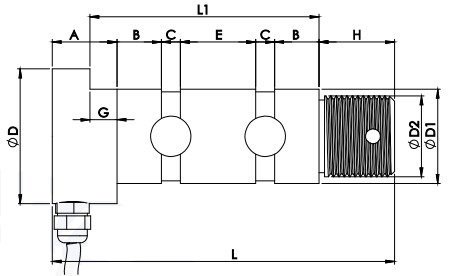

Dimension:
Cap.
L
L1
D
D1
D2
A
B
C
E
G
H
2t
99
62
35
25
M22
24
13
6
14
10
23
3t
113
75
40
30
M27
24
13
6
27
10
24
5t
127
85
50
35
M30
24
16.5
7
28
10
28
7.5t
134
98
50
41
M30
16
20
8
32
10
30
Specification:
Rated Load:
1~200t
Operating Temp.Range:
-30~+70℃
Sensitivity:
(1.0±0.1%) m V/V
Maximum Safe Over Load:
150%F.S
Combined Error:
±0.5% F.S
Ultimate Over Load:
400%F.S
Creep Error(30min):
±0.05% F.S
Recommend Excitation Vol.:
10~12V DC
Zero Balance:
±1% F.S
Maximum Excitation Vol.:
15V DC
Temp. Effect On Zero:
±0.05% F.S/10℃
Sealing Class:
IP67
Temp. Effect On Span:
±0.05% F.S/10℃
Element Material:
Alloy / Stainless Steel
Input Resistance:
400Ω±20Ω
Cable:
Length=L:5m~16m
Output Resistance:
350Ω±3Ω
Citation:
GB/T7551-2008/ OIML R60
Insulation Resistance:
≥5000MΩ
Mode Of Connection:
Red(Input+),Green(Output+),
Black(Input-),White(Output-)
Product name
LC772 Shear Pin Type Load Cell Appliations Shackle Load Pin for Sheaves
Brand
SAINTBOND
Market
All over the world
Features
High precision and stable performance
Advantage
0EM/ODM
Sample Lead Time
5~ 40Days
Sample price
The price is different according to product capacity
