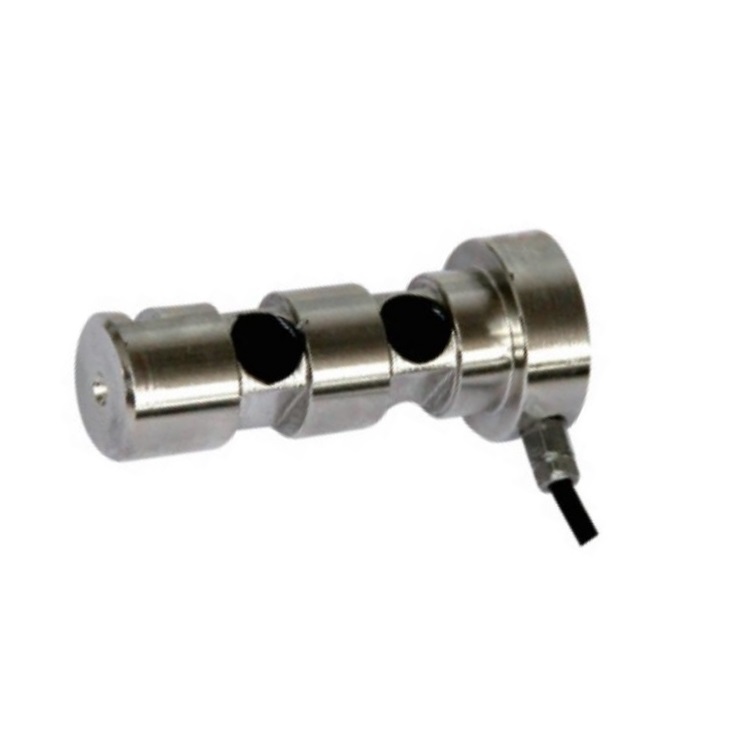

The pin shape double shear beam structure can replace the original pin shaft. It has the characteristics of high precision, anti-eccentric load and high long-term stability. It is widely used in all kinds of vehicles, hoisting mechanism, traction equipment and industrial automation measurement and control system.
Dimension:
Specification:
Rated Load:
50kg~1000kg
Operating Temp.Range:
-30~+70℃
Sensitivity:
1.0~1.5 m V/V
Max. Safe Over Load:
150%F.S
Combined Error:
±0.5% F.S
Ultimate Over Load:
400%F.S
Creep Error(30min):
±0.5% F.S
Recommend Excitation Vol.:
10~12V DC
Zero Balance:
±1% F.S
Max. Excitation Vol.:
15V DC
Temp. Effect On Zero:
±0.05% F.S/10℃
Sealing Class:
IP67
Temp. Effect On Span:
±0.05% F.S/10℃
Element Material:
Alloy / Stainless Steel
Input Resistance:
730Ω±30Ω/380±30Ω
Cable:
Length=L:5m~16m
Output Resistance:
700Ω±3Ω/350±2Ω
Citation:
GB/T7551-2008/ OIML R60
Insulation Resistance:
≥5000MΩ
Mode Of Connection:
Red(Input+),Green(Output+),
Black(Input-),White(Output-)
Product name
LC780 Custom-made Force Sensing Load Pins Reliable Load Pin
Brand
SAINTBOND
Market
All over the world
Features
High precision and stable performance
Advantage
0EM/ODM
Sample Lead Time
5~ 40Days
Sample price
The price is different according to product capacity
