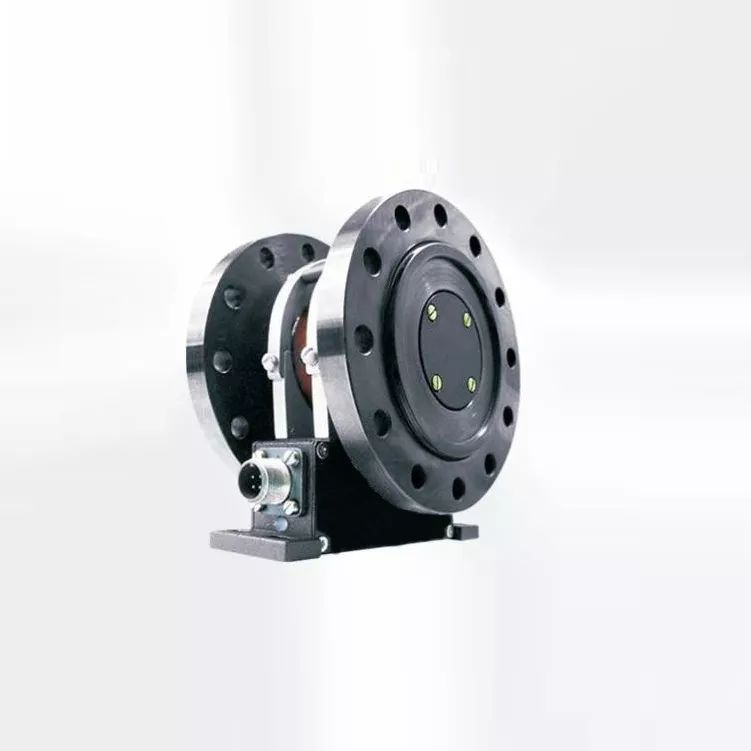

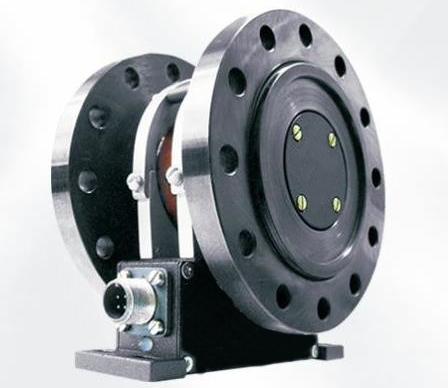

LCT012 Orque Transducer Measures Dynamic Torques Dynamic Torque Measuring Sensor

Product Introduction:

◎Range: 0.1~300K nm;

◎Accuracy: 0.1% FS/0.2% FS;

◎Flange type high speed dynamic torque sensor;

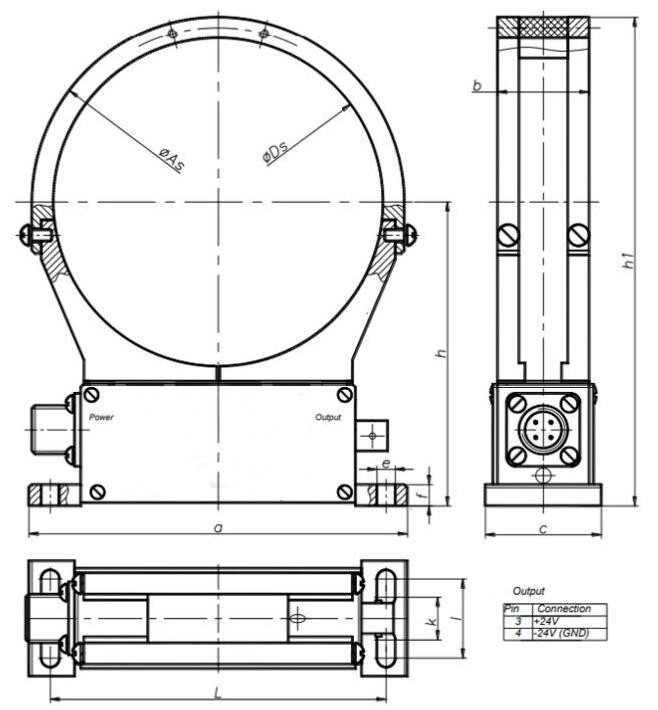

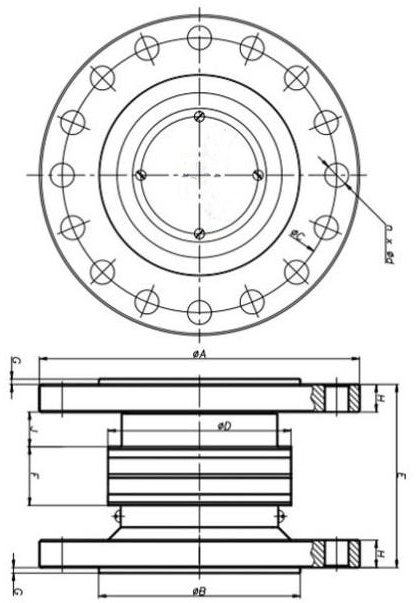

Dimension:

Technical Parameter：

Product Description
Type	Unit	Rated torque	Rotation speed	OverLoad
LCT012-0.1…2	Nm	0.1,0.2,0.5,1,2	20000	150%
LCT012-3…30		3,5,6,8,10,12,15,20,25,30	20000
LCT012-50…150		50,60,80,100,150	16000
LCT012-200…300		200,250,300	16000
LCT012-400…1.2k		400,500,600,800,1000, 1200	16000
LCT012-1.5k…2.5k	kNm	1.5,2,2.5	12000	150% Or 120%
LCT012-3k…6k		3,5,6	10000
LCT012-8k…15k		8,10,15	8000
LCT012-20k…30k		20,25,30	6000
LCT012-40k…60k		40,50,60	4000
LCT012-80k…100k		80,100	2000
LCT012-120k…150k		120,150	2000
LCT012-200k…300k		200,250,300	2000
Technical Parameter
Parameter		Reference Value
Accuracy Class		0.2%FS
Nonlinear		±0.2%
Temperature Drift		±0.1%
Excitation Voltage		12…30V(DC)
Power Waste		＜5W
Measurement Frequency Range		0…1000(-1.5dB)Hz
Amplitude Fluctuation(0…500Hz)		≤0.1dB
Temperature Range		0…+60K
Protection Class		IP40
Output Signal:5-15kHz、30-90kHz、±5V、±10V、4+20mA、USB2.0、Ethernet、RS485、RS232、Pulse Signal

Product name	LCT012 Orque Transducer Measures Dynamic Torques Dynamic Torque Measuring Sensor
Brand	SAINTBOND
Market	All over the world
Features	High precision and stable performance
Advantage	0EM/ODM
Sample Lead Time	5~ 40Days
Sample price	The price is different according to product capacity
Custom Design	Welcome
Form of sale	Factory supply
