SAINTBOND / LCT301 Torque Sensors & Torque Transducers Reaction Static And Rotary Torque

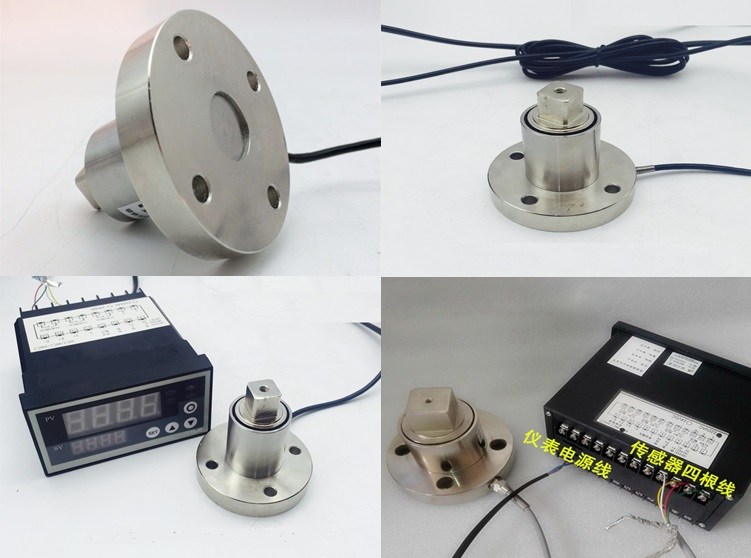

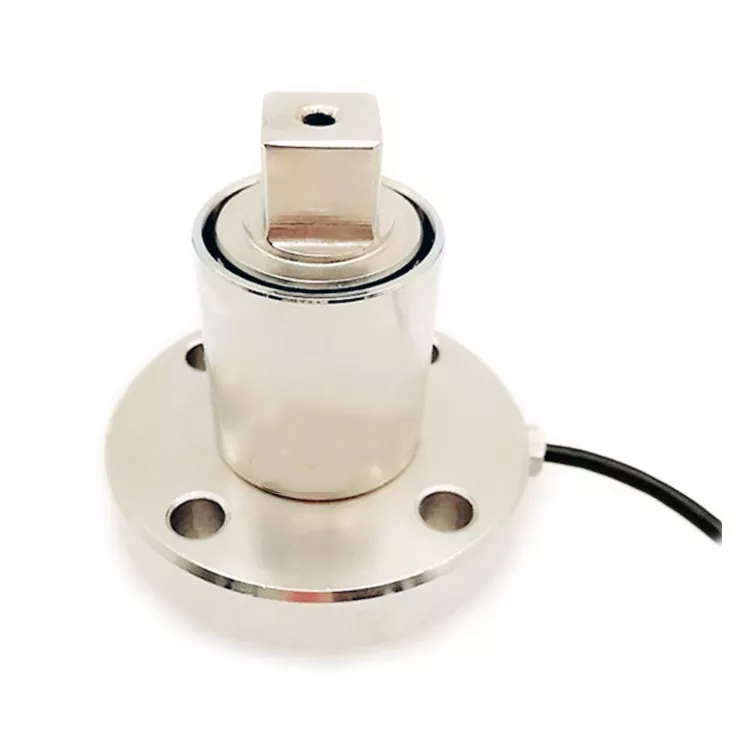

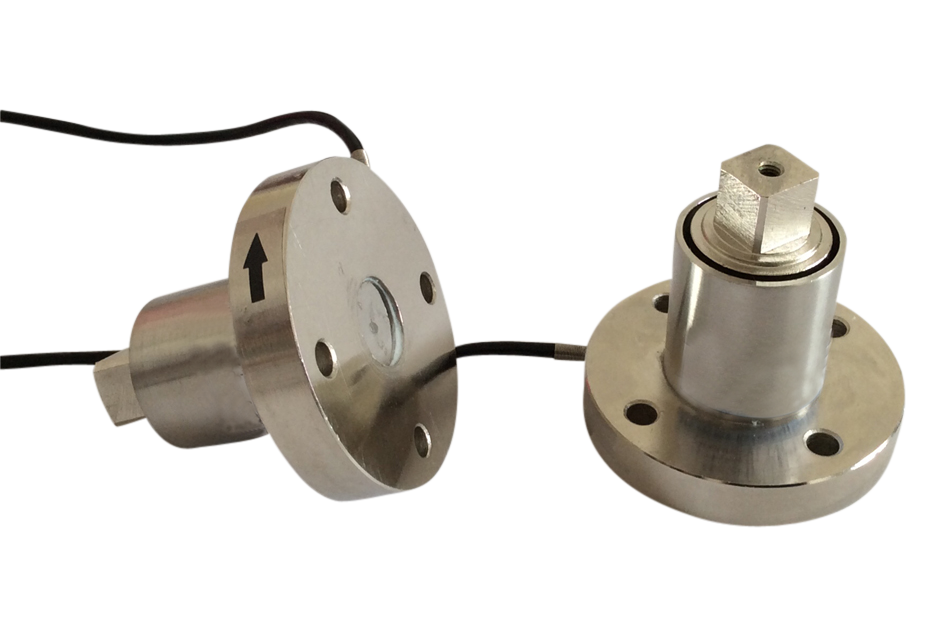

LCT301 Torque Sensors & Torque Transducers Reaction Static And Rotary Torque
Product Description
Features
◎The resistance strain type principle, high precision, stable and reliable performance.
◎Need not be repeated zero can be continuous measurement of positive and reverse torque.
◎Applies to static, non continuous rotary torque force value measurement.

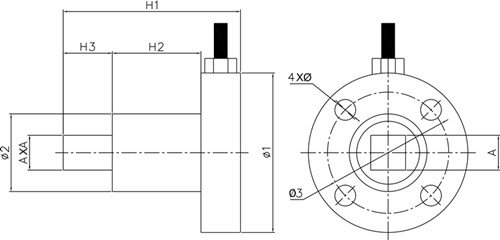

Dimensions
| NM |
A |
H1 |
H2 |
H3 |
Φ1 |
Φ2 |
Φ3 |
Φ |
| 2-200 |
12.5 |
55 |
30 |
15 |
59 |
32 |
45 |
6.5 |
| 300-1500 |
25.4 |
75 |
40 |
24 |
68 |
40 |
55 |
8.5 |
| 2000-3000 |
25.4 |
85 |
44 |
24 |
98 |
56 |
80 |
13 |
Specification:
| Capacity |
2~3000N.M |
Rated Output |
2.0mV/V ±0.1% |
| Zero Balance |
±1% of rated output |
Safe Temp. Range |
-10ºC to + 70ºC |
| Creep After 30 Minutes |
±0.3% of rated output |
Temp. Compensated |
-10ºC to + 40ºC |
| Nonlinearity |
±0.3% of rated output |
Safe Overload |
150% |
| Hysteresis |
±0.3% of rated output |
Input Impedance |
387 ohm ± 20 ohm |
| Repeatability |
±0.3% of rated output |
Output Impedance |
350 ohm ± 5 ohm |
| Temp. Effect On Output |
≤0.05% of applied output/ºC |
Rated Excitation |
10V DC/AC |
| Temp. Effect On Zero |
≤0.05% of applied output/ºC |
Maximum Excitation |
15V DC/AC |
| Product name |
LCT301 Torque Sensors & Torque Transducers Reaction Static And Rotary Torque |
| Brand |
SAINTBOND |
| Market |
All over the world |
| Features |
High precision and stable performance |
| Advantage |
0EM/ODM |
| Sample Lead Time |
5~ 40Days |
| Sample price |
The price is different according to product capacity |
| Custom Design |
Welcome |
| Form of sale |
Factory supply |
