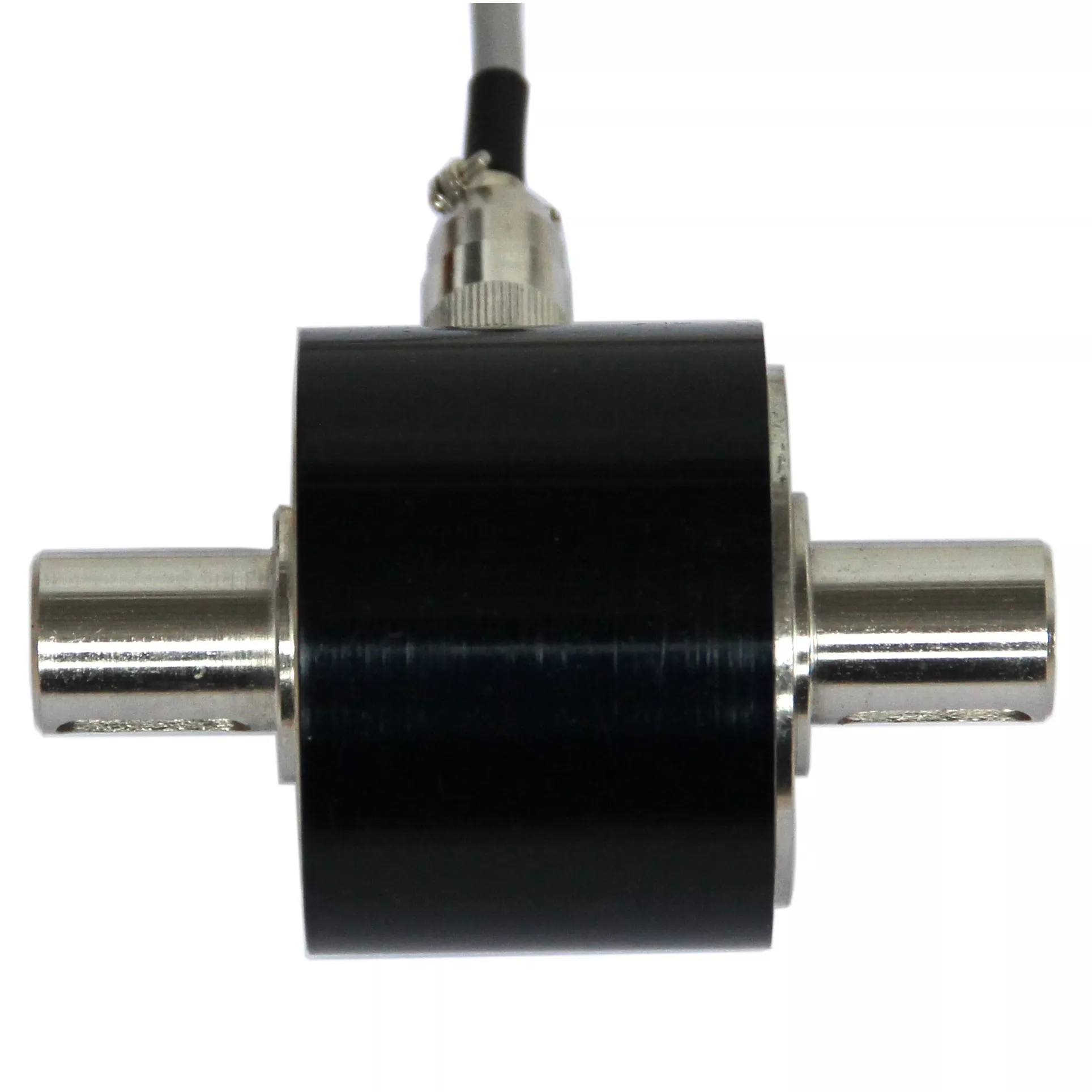

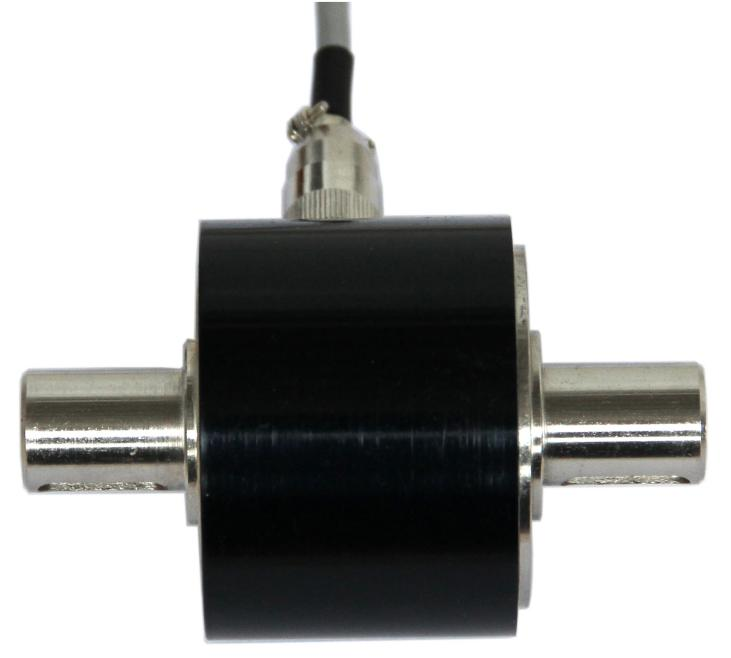

Compact structure, small volume and light weight. It has the characteristics of high measurement accuracy, sensitive response, good long-term stability and convenient installation; It is suitable for various static torque measurement fields.

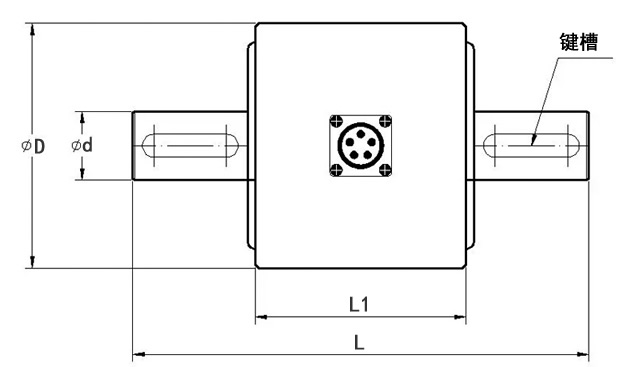

Dimension:
Cap.(N.M)
Φd
ΦD
L
L1
Key (Long)×Wide×High)
1~10
Φ10
Φ62
100
48
3×16×3 Single Key
20~100
Φ18
Φ64
119
55
6×25×6Single Key
150~300
Φ28
Φ72
129
55
8×30×7Single Key/Double Key
500~700
Φ38
Φ82
139
55
10×35×8Single Key/Double Key
1000
Φ48
Φ92
173
55
Single Key/Double Key
2000~3000
Φ60
Φ114
200
55
Double Key
5000~7000
Φ75
Φ130
263
55
Double Key
10000
Φ100
Φ166
321
55
Double Key
◎The overall dimensions can be designed and customized according to customer requirements.
