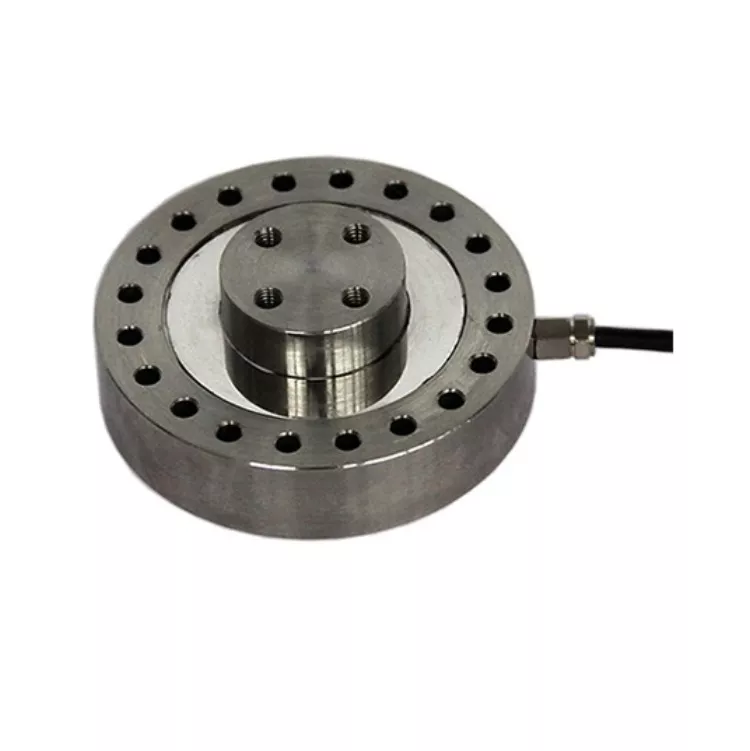

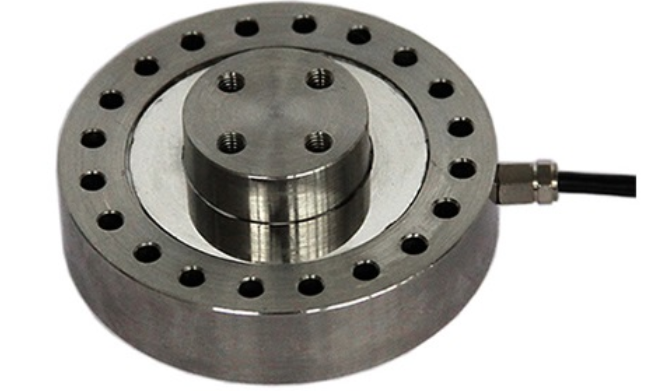

Product Description:
◎Static torque sensor, small volume, made of stainless steel.
◎It has the characteristics of high precision, good stability, strong anti-interference ability and convenient installation.
◎Applicable to static and discontinuous rotation torque measurement.
◎It is suitable for connection with disks, joint shaft connection of robots, and measurement in the field of drilling rig and industrial automation.
Dimension:
◎The overall dimensions can be designed and customized according to customer requirements.
Technical Parameter:
| Capacity |
5～200(N.m) |
Sensitivity Temp. Drift |
±0.05%F.S/10℃ |
| Zero Balance |
1.5±0.1mV/V |
Operating Temp. Range |
385Ω±35Ω |
| Rated Output |
0.05%F.S |
Input Impedance |
350Ω±3Ω |
| Nonlinearity |
±0.5%F.S/30min |
Output Impedance |
≥2000MΩ |
| Hysteresis |
±0.5%F.S |
Insulation Resistance |
5～10VDC |
| Repeatability |
±0.5%F.S |
Safe Overload |
-30～+70℃ |
| Creep (30 Minutes) |
±0.5%F.S |
Supply bridge voltage |
120%F.S |
| Zero Temp. Drift: |
±0.05%F.S/10℃ |
Material |
Stainless Steel |
| Product name |
LCT308 Torque Transducer Torque Sensors Or Transducers Reaction Torque Sensors |
| Brand |
SAINTBOND |
| Market |
All over the world |
| Features |
High precision and stable performance |
| Advantage |
0EM/ODM |
| Sample Lead Time |
5~ 40Days |
| Sample price |
The price is different according to product capacity |
| Custom Design |
Welcome |
| Form of sale |
Factory supply |
