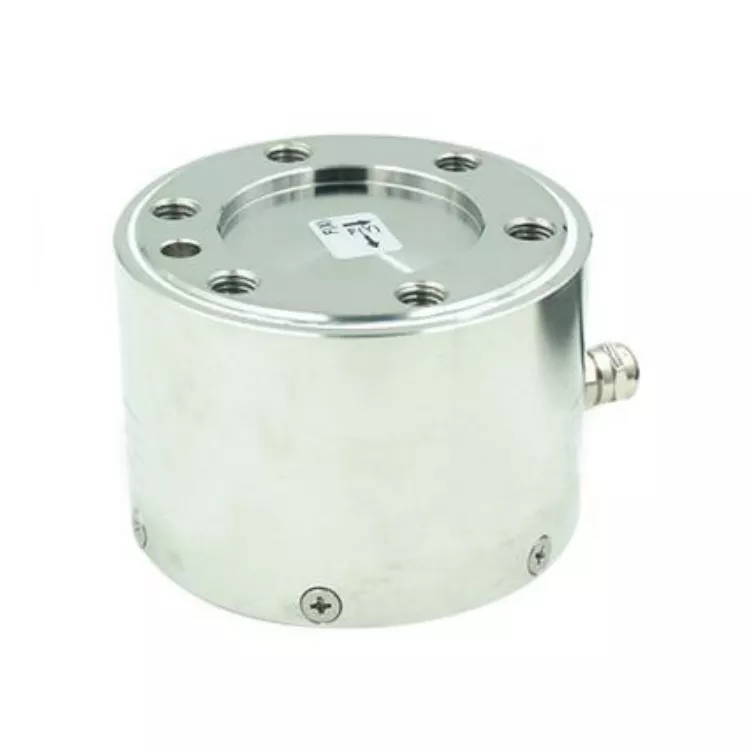

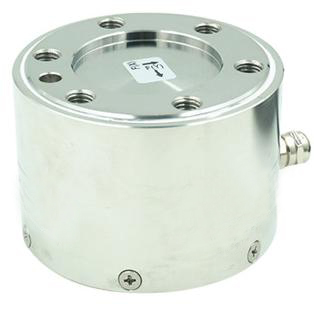

SAINTBOND / LCX3016 Multi Axis Load Cell Manufacturers Suppliers Multi-Axis Load Cells & Sensors
LCX3016 Multi Axis Load Cell Manufacturers Suppliers Multi-Axis Load Cells & Sensors
Product Description
◎High accuracy, high side load tolerance;
◎Easy to install, IP65 protection;
◎Accept custom;

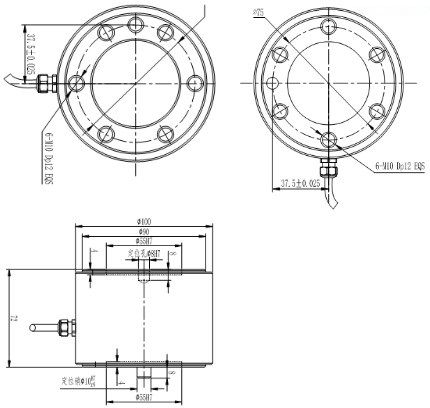

Dimension:
Load Direction:
Technical Parameter:
| Rated Load(N): |
X: 10/25/50N
Y: 10/25/50N
Z: 25/50/100N |
| Rated output: |
≈1.0mV/V |
Output impedance: |
700±10Ω |
| Zero balance: |
±2%F.S. |
Insulation: |
≥5000MΩ/100VDC |
| Non-linearity: |
0.2%F.S. |
Recommended excitation: |
5~15V |
| Hysteresis: |
0.2%F.S. |
Maximum excitation: |
20V |
| Repeatability: |
0.2%F.S. |
Compensated temp range: |
-10~40℃ |
| Creep(30min): |
0.5%F.S. |
Operation temp range: |
-20~75℃ |
| Temp.effect on output: |
0.1%F.S./10℃ |
Safe overload: |
150%F.S. |
| Temp.effect on zero: |
0.1%F.S./10℃ |
Ultimate overload: |
300%F.S. |
| Input impedance: |
780±20Ω |
Weight approx. |
1.6kg |
| Product name |
LCX3016 Multi Axis Load Cell Manufacturers Suppliers Multi-Axis Load Cells & Sensors |
| Brand |
SAINTBOND |
| Market |
All over the world |
| Features |
High precision and stable performance |
| Advantage |
0EM/ODM |
| Sample Lead Time |
5~ 40Days |
| Sample price |
The price is different according to product capacity |
| Custom Design |
Welcome |
| Form of sale |
Factory supply |
