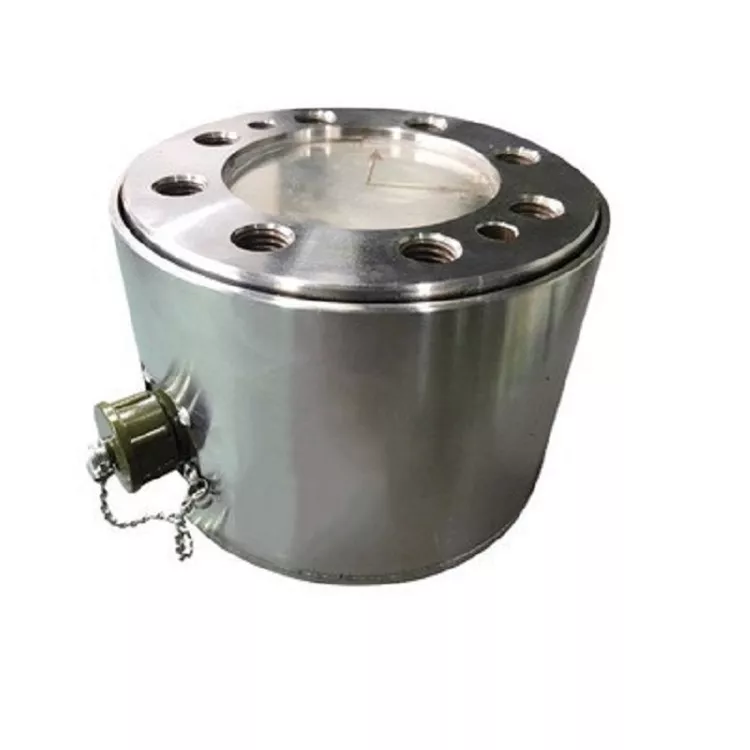

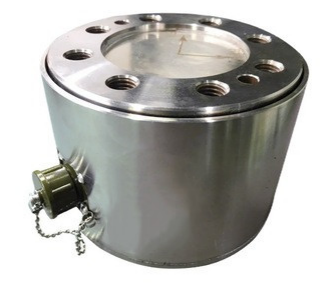

SAINTBOND / LCX3039 Three Axis Load Cells Multi-dimensional Load Cell Three Dimensional Force Sensor
LCX3039 Three Axis Load Cells Multi-dimensional Load Cell Three Dimensional Force Sensor
Product Description
Product Introduction:
◎Material: stainless steel;
◎Measuring range fxy: 50100kn;Fz:100,200kN；
◎Unidirectional accuracy:≤0.3% FS;
◎Comprehensive accuracy: 1%;
◎Output signal: 1.0mV/V;

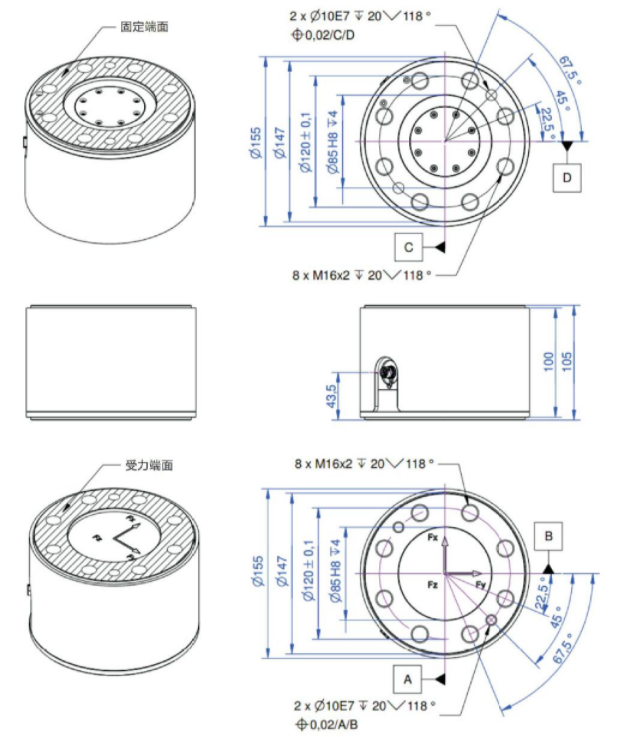

Dimension:
Technical Parameter：
| Parameter |
Reference Value |
Parameter |
Reference Value |
| Material |
Stainless Steel |
Insulation Resistance |
>5×109Ω |
| Diameter×height |
Φ155×105mm |
Cable length |
3m |
| Range XY axis |
50kN,100kN |
Accuracy class |
1.0%FS |
| Range z-axis |
100kN,200kN |
Linear error |
0.3%FS |
| Safety overload |
150%FS |
Repeatability |
0.2%FS |
| Damage overload |
300%FS |
Zero temp. shift |
0.1%FS/K |
| Sensitivity output |
1.0mV/V |
Sensitivity temp. shift |
0.1%RD/K |
| Zero output |
<±0.1mV/V |
Creep within 30 minutes |
0.2%FS |
| Excitation voltage Max |
10V |
Temp. compensation range |
-10…+70℃ |
| Input resistance |
350±5Ω |
Operating temp. range |
-20…+85℃ |
| Output resistance |
350±5Ω |
|
|
| Product name |
LCX3034 Multi Component Load Cells Three-Axis Force Fingertip Sensor |
| Brand |
SAINTBOND |
| Market |
All over the world |
| Features |
High precision and stable performance |
| Advantage |
0EM/ODM |
| Sample Lead Time |
5~ 40Days |
| Sample price |
The price is different according to product capacity |
| Custom Design |
Welcome |
| Form of sale |
Factory supply |
