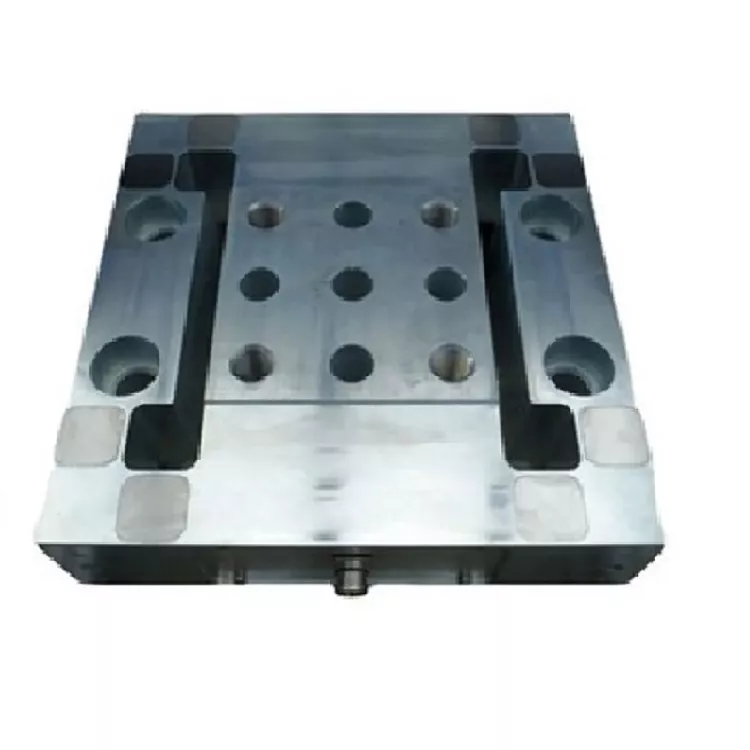

SAINTBOND / LCX3045 Multi Component Load Cells Three Multi-dimensional Force Sensor
LCX3045 Multi Component Load Cells Three Multi-dimensional Force Sensor
Product Description
Product Introduction:
◎Material: alloy steel;
◎Measuring range fxyz: 500kN;
◎Accuracy: 0.5%;
◎Output signal: 1.0mV/V;

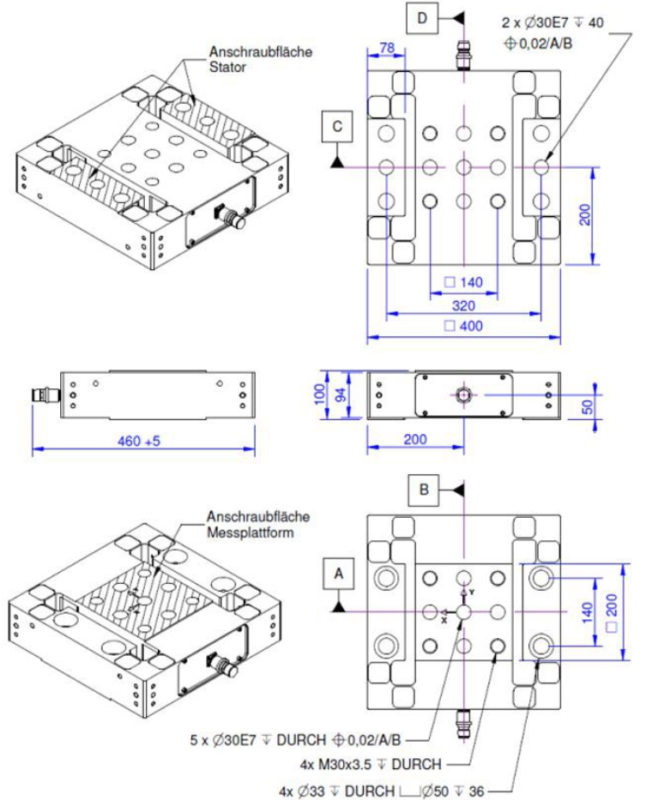

Dimension:
Technical Parameter：
| Parameter |
Reference Value |
Parameter |
Reference Value |
| Material |
Alloy Steel |
Cable length |
5m |
| Length×width×height |
400×400×100mm |
Accuracy class |
0.5%FS |
| Range XYZ axis |
500kN |
Linear error |
0.2%FS |
| Safety overload |
150%FS |
Hysteresis |
0.02%FS |
| Sensitivity output |
1.0 mV/V |
Zero temp. shift |
0.02%FS/K |
| Zero output |
0.05mV/V |
Full scale temp. shift |
0.02%RD/K |
| Excitation voltage Max |
10V |
Creep |
0.1%FS |
| Input resistance |
350±5Ω |
Operating temp. range |
-10…+85℃ |
| Output resistance |
350±5Ω |
Protection level |
IP67 |
| Insulation Resistance |
5Ω |
|
|
| Product name |
LCX3045 Multi Component Load Cells Three Multi-dimensional Force Sensor |
| Brand |
SAINTBOND |
| Market |
All over the world |
| Features |
High precision and stable performance |
| Advantage |
0EM/ODM |
| Sample Lead Time |
5~ 40Days |
| Sample price |
The price is different according to product capacity |
| Custom Design |
Welcome |
| Form of sale |
Factory supply |
