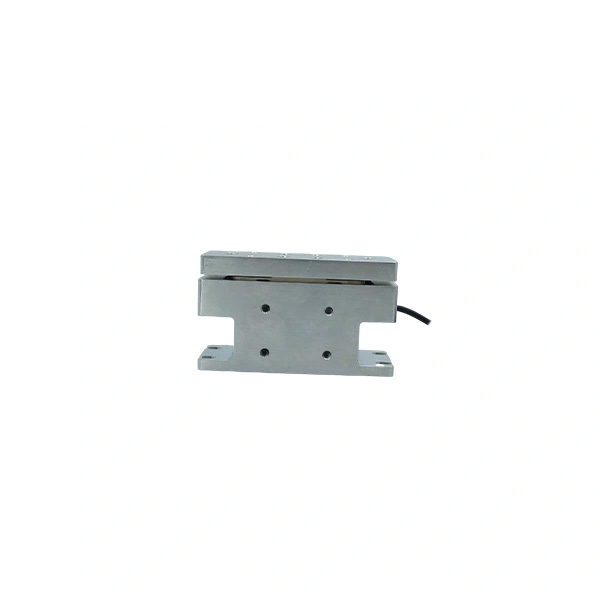

SL953 Roll Tension Sensor

Technical Specifications

Specfications	Technique	Specfications	Technique
Capacity	38N(Capacity Optional)	Insulation Resistance	≥5000M2/100V(DC)
Sensitivity	0.6±10%mV/V	Recommended Excitation	5~12V
Zero Balance	±2%mV/V	Max Excitation	15V
Creep	≤0.05%F.S	Compensated Temp Range	-10~40℃
Non-linearity	≤0.1%F.S	Operating Temp Range	-20~60℃
Hysteresis	≤0.3%F.S	Safe Overload	150%F.S.
Repeatability	≤0.05%F.S.	Ultimate Overload	200%F.S.
Input Impedance	350±10Ω	Cable Size	Aviation plug
Output Impedance	350±5Ω	Weight	0.5kg
Temp.effect on output	0.05%F.S./10℃	Material	Aluminium alloy
Temp.effect on zero	0.05%F.S./10℃
Wiring	Red:EXC+,Green:Sig+,Yellow:Shielding wire,White:Sig-,Black:EXC-
