VALCOM / VLC-512 Miniature Washer type Load Cell

VLC-512 Miniature Washer type Load Cell

Rated output	1mV/V±0.3mV/V
Nonlinearity	±1%R.C.
Hysteresis	±1%R.C.
Repeatability	±1%R.C.
Zero balance	±0.1mV/V
Recommended excitation voltage	5V or less
Maximum excitation voltage	10V
Input terminal resistance	350Ω±5Ω
Output terminal resistance	350Ω±5Ω
Insulation resistance	1000MΩ or more (DC 50V)
Temperature compensation range	−5–60°C (No condensation or freezing)
Safe temperature range	−10–70°C (No condensation or freezing)
Temperature effect on zero balance	±0.2%R.C./10°C
Temperature effect on load	±0.5%R.C./10°C
Safe overload rating	150%R.C.
Ultimate overload rating	200%R.C. or more
IP rating	Equivalent to IP60 (Main body only) (Note 1)
Cable	φ5-4-core shielded robot cable 5m

(Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.

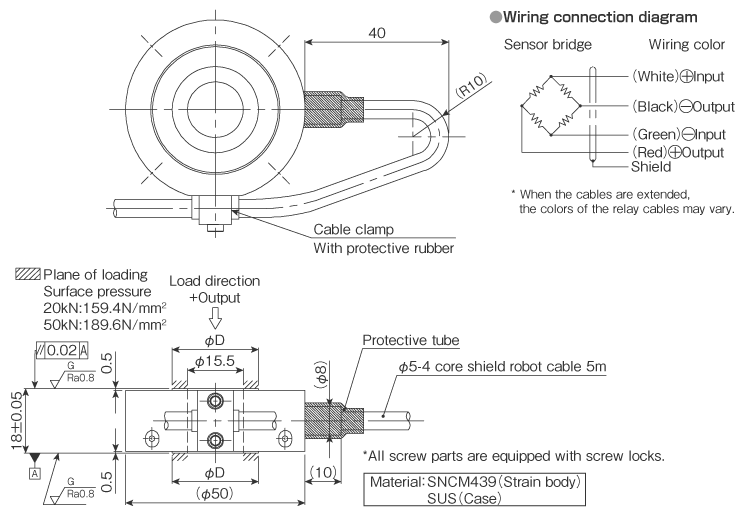

Selection	Model	Rated capacity	Deflection at R.C.	D	Weight
	VLC-20KN-512	20kN	Approx. 0.01mm	20	Approx. 500g
	VLC-50KN-512	50kN	Approx. 0.01mm	24	Approx. 500g
