VALCOM / VLC-E159 Sub-miniature Button Load Cell

VLC-E159 Sub-miniature Button Load Cell

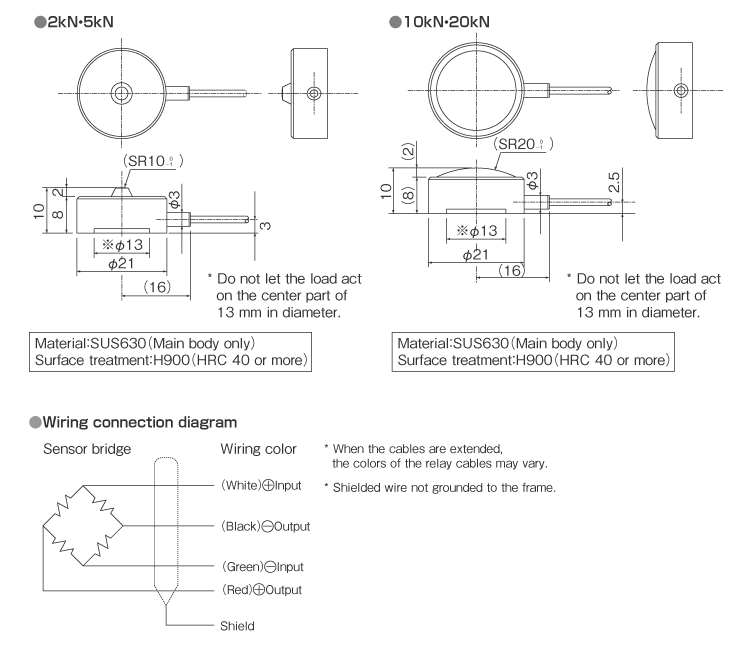

Rated output	1mV/V ±30% (20kN:1.5mV/V ±20%)
Nonlinearity	Up to ±1%R.C. (20kN: Up to ±2%R.C.)
Hysteresis	Up to ±1%R.C. (20kN: Up to ±2%R.C.)
Repeatability	Up to ±1%R.C.
Zero balance	Up to ±5%R.C.
Temperature effect on zero balance	±0.5%R.C./10°C
Temperature effect on load	±0.5%R.C./10°C
Safe overload rating	120%R.C.
Temperature compensation range	−5–50°C (No condensation or freezing)
Safe temperature range	−10–60°C (No condensation or freezing)
Input terminal resistance	350Ω±2.5%
Output terminal resistance	350Ω±2.5%
Recommended excitation voltage	5V or less
Maximum excitation voltage	7V
Insulation resistance	1000MΩ or more (DC 50V)
IP Rating	Equivalent to IP60 (Main body only) (Note 1)
Cable	φ1.7 4-core Shielded cable (FEP-PVC-YI) 3m, directly-connected

(Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.

Model	Rated capacity	Deflection at R.C.	Weight
VLC-2KNE159	2kN	Approx. 0.01mm	Approx. 50g
VLC-5KNE159	5kN
VLC-10KNE159	10kN
VLC-20KNE159	20kN
