VALCOM / VPW12CC3 Single Point type Load Cell

VPW12CC3 Single Point type Load Cell

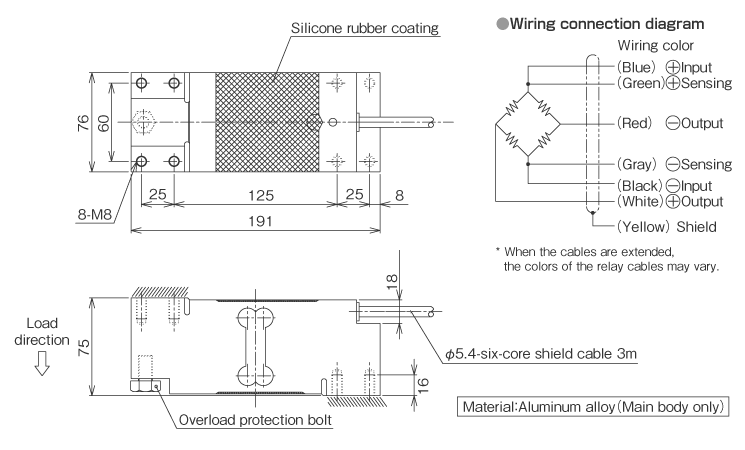

Rated output	2.0±0.2mV/V
Nonlinearity	±0.0166%R.C.
Hysteresis	±0.0166%R.C.
Zero balance	±0.1mV/V
Temperature effect on zero balance	See table below.
Temperature effect on load	20–40°C:±0.0175%R.C./10°C -10–20°C:±0.0117%R.C./10°C
Safe overload rating	150%R.C.
Temperature compensation range	−10–40°C (No condensation or freezing)
Safe temperature range	−10–50°C (No condensation or freezing)
Input terminal resistance	300–500Ω
Output terminal resistance	300–500Ω
Recommended excitation voltage	5V
Excitation voltage range	15V
Insulation resistance	2GΩ
IP Rating	Equivalent to IP67 (Note 1)
Cable	φ5.4-6-core Shielded cable 3m

Creep 30min: ±0.0166%R.C. Eccentric error: ±0.0233%R.C.
(Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.

Model	Rated capacity	Minimum load cell Verification interval	Temperature effect on zero balance	Maximum Load Area	Deflection at R.C.	Weight
VPW12CC3-50kg	50kg (490.3N)	10g (0.0980N)	±0.0280%R.C./10°C	800×800mm	Approx. 0.5mm	Approx. 2.4kg
VPW12CC3-75kg	75kg (735.5N)	10g (0.0980N)	±0.0186%R.C./10°C
VPW12CC3-100kg	100kg (980.7N)	20g (0.1961N)	±0.0280%R.C./10°C
VPW12CC3-150kg	150kg (1.471kN)	20g (0.1961N)	±0.0186%R.C./10°C
VPW12CC3-200kg	200kg (1.961kN)	50g (0.4903N)	±0.0350%R.C./10°C
VPW12CC3-250kg	250kg (2.452kN)	50g (0.4903N)	±0.0280%R.C./10°C
VPW12CC3-300kg	300kg (2.942kN)	50g (0.4903N)	±0.0233%R.C./10°C
VPW12CC3-500kg	500kg (4.903kN)	100g (0.9807N)	±0.0280%R.C./10°C
VPW12CC3-635kg	635kg (6.227kN)	100g (0.9807N)	±0.0221%R.C./10°C
VPW12CC3-750kg	750kg (7.355kN)	100g (1.9614N)	±0.0186%R.C./10°C
