VALCOM / VS40AC3 series S type Load Cell

VS40AC3 series S type Load Cell

Rated output	Tensile 2mV/V±0.25% Compression -2mV/V±0.25%V
Nonlinearity	±0.0180%R.C.
Hysteresis	±0.0170%R.C.
Zero balance	±0.01mV/V
Temperature effect on zero balance	±0.0170%R.C./10°C
Temperature effect on load	±0.0140%R.C./10°C
Safe overload rating	150%R.C.
Temperature compensation range	−10–40°C (No condensation or freezing)
Safe temperature range	−30–70°C (No condensation or freezing)
Input terminal resistance	340.0–500.0Ω
Output terminal resistance	350Ω±1.5Ω
Recommended excitation voltage	5V or less
Maximum excitation voltage	12V
Insulation resistance	5GΩ or more (DC 100V)
IP Rating	Equivalent to IP68 (Note 1)
Cable	φ5.4-6-core shielded cable 6m

Creep 30min: ±0.0245%R.C.
(Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.

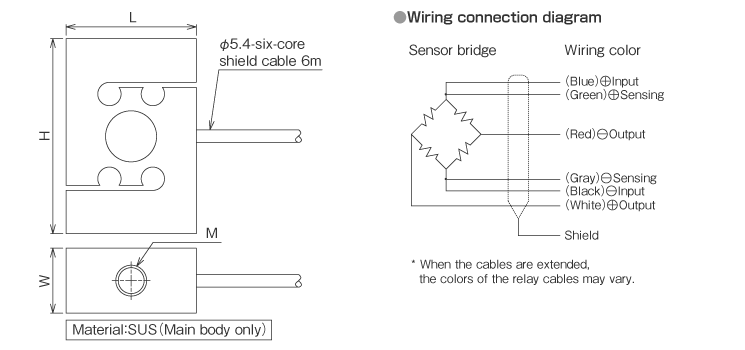

Model	Rated capacity	Deflection at R.C.	L	W	H	M	Weight
VS40AC3-50KGD	490.3N (50kgf)	0.15mm±15%	50.8	25.4	63.5	M8×1.25	0.6kg
VS40AC3-100KGD	980.7N (100kgf)	0.15mm±15%	50.8	25.4	76.2	M12×1.75	0.7kg
VS40AC3-200KGD	1.961kN (200kgf)	0.15mm±15%	50.8	25.4	76.2	M12×1.75	0.7kg
VS40AC3-500KGD	4.903kN (500kgf)	0.15mm±15%	57.2	31	87.3	M12×1.75	1.1kg
VS40AC3-1TD	9.807kN (1tonf)	0.25mm±15%	57.2	31	87.3	M12×1.75	1.1kg
VS40AC3-2TD	19.61kN (2tonf)	0.38mm±15%	69.8	36.5	100	M24×2	1.7kg
VS40AC3-3TD	29.42kN(3tonf)	0.38mm±15%	69.8	36.5	100	M24×2	1.7kg
VS40AC3-5TD	49.03kN(5tonf)	0.46mm±15%	76.2	36.5	114.3	M24×2	2.2kg
Discontinued VS40AC3-3TD and VS40AC3-5TD Successor model (VS40AC3-5TD): [VRSCC3-5T]
