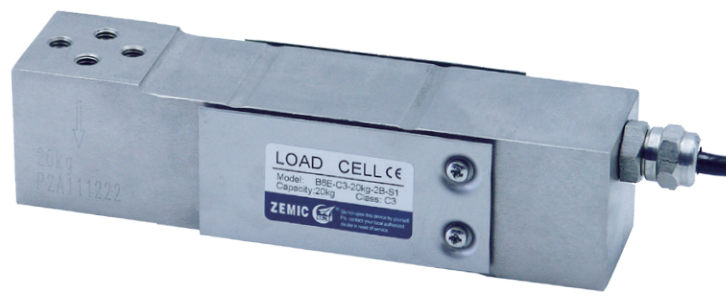

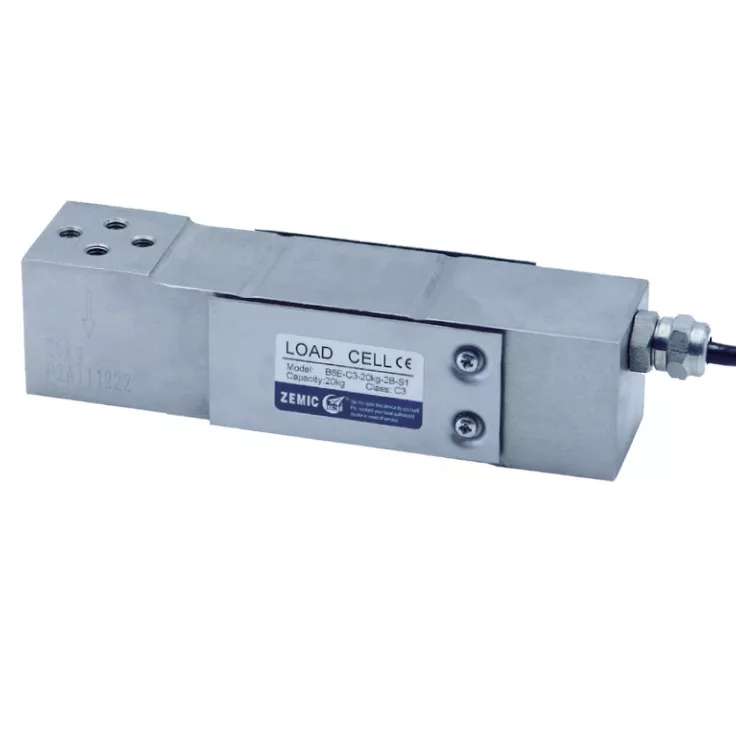

B6E H6E Stainless Steel IP67 Single Point Load Cell

Short Description:

◎Stainless/ alloy steel IP67 single point load cell；

◎ Suitable for the pricing scales, bench scales, belt scales etc；

◎Maximum platform size: 400*400mm；

Available models：

Capacity	Accuracy	Full article description
xxkg	C3	B6E/H6E-C3-xxkg-2B
xxkg	C3	B6E/H6E-C3-xxkg-2B-S1
xxkg	C3	B6E/H6E-C3-xxkg-2G
xxkg	C3	B6E/H6E-C3-xxkg-2G-S1
G:The Insulation resistance between bridge circuit and shielded wire is zero

Specification：

Maximum capacity ( Emax)	kg	20/30/50/75/100/150/200/250/300
Accuracy dlass		C3
Maximum number of verification intervals		3000
Maximum number of load cell intervals (nLC)	N.maxVmin	Emax/10000
Combined error	%FS	±0.020
Creep	%FS/30min	±0.016
Temperature effect on sensitivity	%FS/10℃	±0.011
Temperature effect on zero	%FS/10℃	±0.015
Output sensitivity(= FS)	mV/V	2.0+0.2
Input resistance	Ω	400±20
Output resistance	Ω	351±2.0
Insulation resistance	MΩ	≥ 5000(50VDC)
Zero balance	%FS	≤ ±1.5
Compensated temperature	℃	-10~+40
Operating temperature	℃	-35~+65
Excitation, recommended voltage	V	5~12(DC)
Excitation maximum	V	18(DC)
Safeoverload	of Emax	150
Ultimate overload	of Emax	300
Corner correction		0.02%load value/100mm
ATEX class( optional)		Ⅱ1G Ex ia ⅡC T4	Ⅱ1D Ex iaD 20 T73℃	Ⅱ3G Ex nL ⅡC T4
Note: “S1” output sensitivity is 2.0± 0.002mV/V,input resistance is 384 ±4

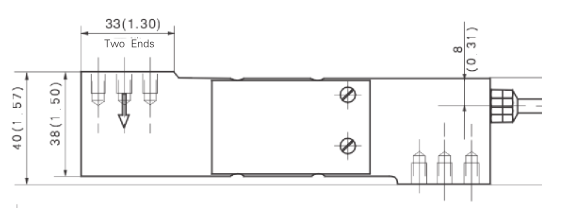

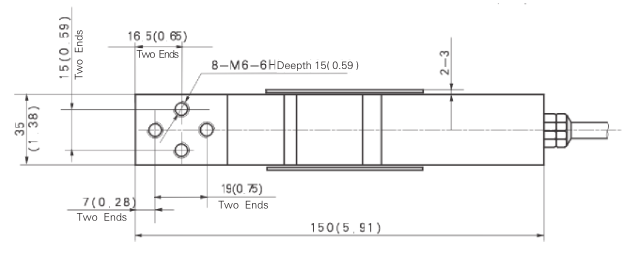

Dimensions in mm：

Wiring：

◎Adopt shielded, 4 conductor cable: Φ5mm；

◎Standard cable length: 2m；

Zemic / B6E H6E Stainless Steel IP67 Single Point Load Cell
