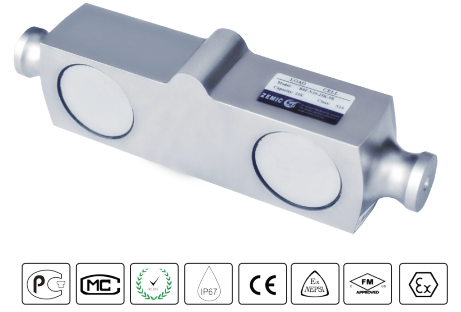

Short Description:
◎Stainless steel construction, dual shear beam structure, adhesive sealed, compression loading available；
◎Ingress protection (according to EN 60529): IP67；
◎Suitable for electronic truck scales, hopper scales, track scales and other electronic weighing devices；
Available models：
| Capacity |
Accuracy |
Full article description |
| xxklb |
D3 |
B9F-D3-xxK-9B |
Specification：
| Capacity |
klb |
10/15/20/25/30/40/50/60/75 |
| Accuracy class |
|
D3 |
| Maximum number of verification intervals |
N.max |
3000 |
| Maximum number of load cell intervals ( nLC ) |
vmin |
Emax/10000 |
| Combined error |
%FS |
±0.020 |
| Creep |
%FS/30min |
±0.016 |
| Temperature effect on sensitivity |
%FS/10℃ |
±0.011 |
| Temperature effect on zero |
%FS/10℃ |
±0.015 |
| Output sensitivity ( = FS ) |
mV/V |
3.0±0.003 |
| Input resistance |
Ω |
700±7 |
| Output resistance |
Ω |
703±4 |
| Insulation resistance |
MΩ |
≥ 5000(50VDC) |
| Zero balance |
%FS |
±1.0 |
| Compensated temperature |
℃ |
-10~+40 |
| Operating temperature |
℃ |
-35~+65 |
| Excitation, recommended voltage |
V |
5~12(DC) |
| Excitation maximum |
V |
18(DC) |
| Safe overload |
of Emax |
150 |
| Ultimate overload |
of Emax |
300 |
| ATEX classification (optional) |
|
II1G Ex ia IIC T4 |
II1D Ex iaD20 T73℃ |
II3G Ex nL II C T4 |

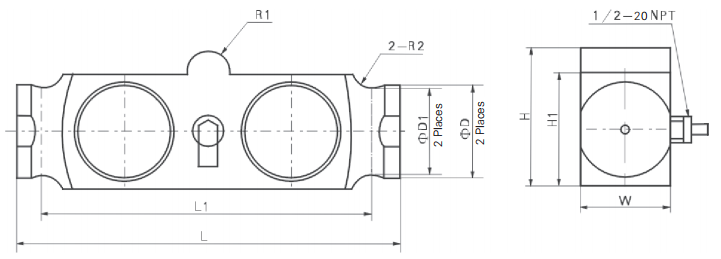

Dimensions in mm：
Dimension
Capacity |
L |
L1 |
H |
H1 |
W |
ΦD |
ΦD1 |
R1 |
R2 |
| 10~25klb |
203.2 |
180.95 |
58.8 |
49.28 |
36.58 |
Φ25.4 (1.0) |
Φ20.32 (0.8) |
R9.52 (0.38) |
R9.53 (0.37) |
| (8.00) |
(7.12) |
(2.31) |
(1.94) |
(1.44) |
| 40~75klb |
215.9 |
184.15 |
76.12 |
62.23 |
49.53 |
Φ50.8 (2.0) |
Φ44.5 (1.75) |
R12.7 (0.5) |
R19.05 (0.75) |
| (8.50) |
(7.25) |
(3.00) |
(2.45) |
(1.95) |
Wiring：
◎Adopt shielded, 4 conductor cable: Φ5mm；
◎Standard cable length: 9m；
