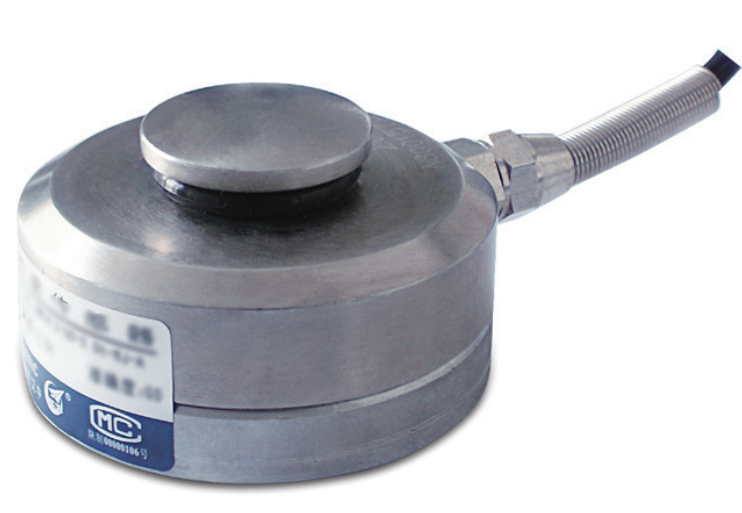

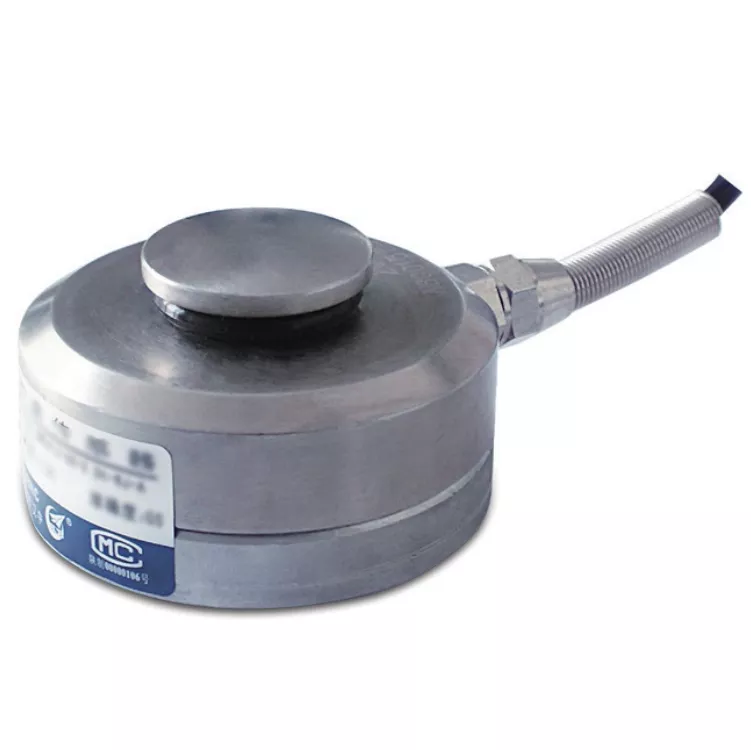

BM24L3 Load Cell Zemic Compression Load Cell

Short Description:

◎Stainless steel, hermetically welded and high accuracy；

◎Ingress protection (according to EN 60529): IP68；

◎Suitable for wheel-axle recognition and other compression force measuring devices；

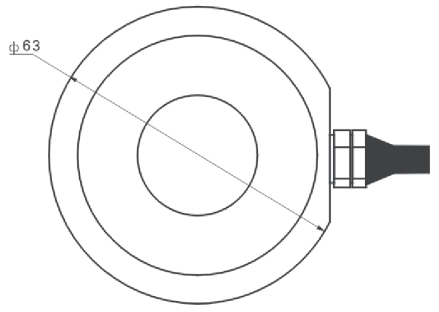

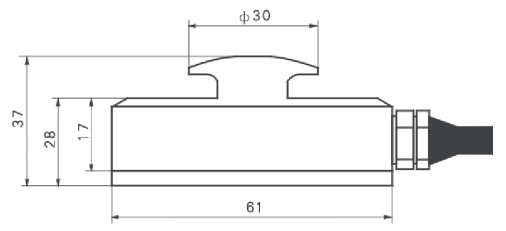

Dimensions in mm：

Available models：

Capacity	Accuracy	Full article description
2t	G5	BM24L3-G5-2t-6J

Specification：

Output sensitivity ( = FS )	mV/V	2.0 ± 0.01
Combined error	%FS	0.50%
Minimum dead load	of Emax	±0.0174
Safe overload	of Emax	150 %
Ultimate overload	of Emax	300 %
Zero balance	%FS	±1.0
Excitation, recommended voltage	V	10(DC)
Excitation maximum	V	15(DC)
Input resistance	Ω	700±7
Output resistance	Ω	700±5
Insulation resistance	MΩ	≥ 5000 ( 50VDC )
Compensated temperature	℃	-10 ~+40
Operating temperature	℃	-35 ~+65
Element material		Stainless steel
Ingress protection (according to EN 60529)		IP68
Recommended torque on fixation	N.m	M4:40
