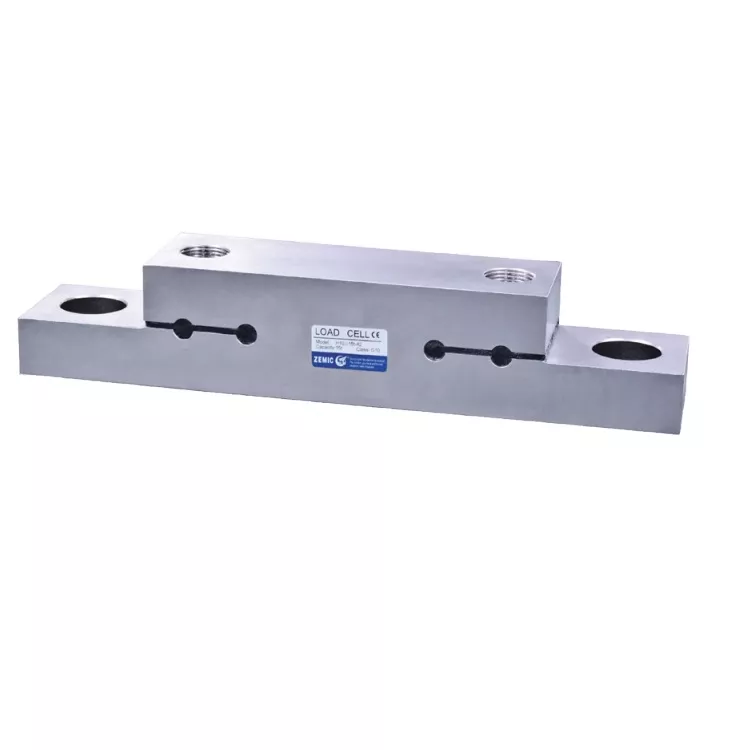

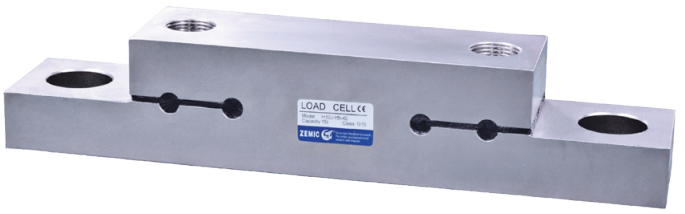

Short Description:
◎Alloy steel , nickel plated, plate bending beam structure, adhesive sealed, compression load；
◎Ingress protection (according to EN 60529): IP67；
◎Suitable for on board weighing；
Available models：
| Capacity |
Full article description |
Capacity |
Full article description |
| 16.5klb |
H10J-16.5K-10 |
15t |
H10J-15t-30 |
| 16.5klb |
H10J-16.5K-13 |
15t |
H10J-15t-31 |
| 16.5klb |
H10J-16.5K-16 |
15t |
H10J-15t-40 |
| 15klb |
H10J-15K-19 |
15t |
H10J-15t-41 |
| 15t |
H10J-15t-42 |
Specification：
| No. of products type |
|
-10/-13 |
-16 |
-19 |
-30/-40/-42 |
-31/-41 |
| Maximum capacity ( Emax ) |
|
16.5klb |
15klb |
15t |
| Output sensitivity ( = FS ) |
mV/V |
0.5±0.01 (@12.5K) |
-0.5±0.01
(@12.5K) |
0.5291±0.01
(@13228lb) |
0.50±0.05
(@6t) |
0.45±0.05
(@6t) |
| Combined error |
%FS |
±1.0 |
| Non-repeatability |
%FS |
±0.1 |
| Creep (20min) |
%FS |
±0.1 |
| Zero output |
%FS |
±2.0 |
| Compensated temperature |
℃ |
-10~+40 |
| Operating temperature |
℃ |
-35~+65 |
| Input resistance |
Ω |
387±25 |
| Output resistance |
Ω |
350±3.5 |
| Insulation resistance |
MΩ |
≥ 5000 |
| Excitation, recommended voltage |
V |
5~12(DC) |
| Excitation maximum |
V |
18(DC) |
| Safe overload |
of Emax |
120 |
| Ultimate overload |
of Emax |
150 |

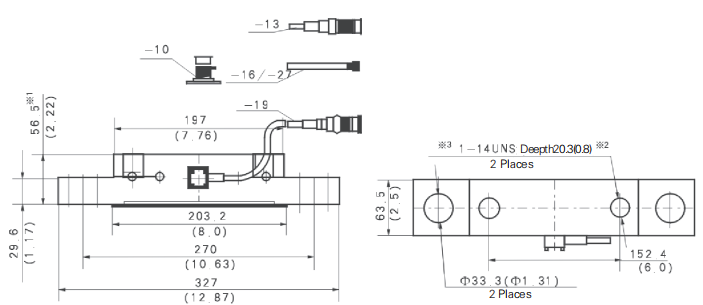

Dimensions in mm：
◎62(2.44) for H10J-15t-31, H10J-15t-41, H10J-15t-42；
◎25.4(1.0) for H10J-15t-31, H10J-15t-41, H10J-15t-42；
◎1-12UNF for H10J-15t-31, H10J-15t-41；
Wiring：
| No. of products type |
|
-10/-13 |
-16 |
-19 |
-30/-40/-42 |
-31/-41 |
| Wiring |
|
-10: adopt standard connector with 7 conductors.
13: adopt connector with 7 wires. Length: 1m. |
4 conductor cable with square connector. Length: 10m |
4 conductor cable with twin connectors.
Length: 1m. |
4 conductor cable for -30 and -31, cable length 10m.
4 conductor green cable for -40, -41 and -42, cable length 10m. |
