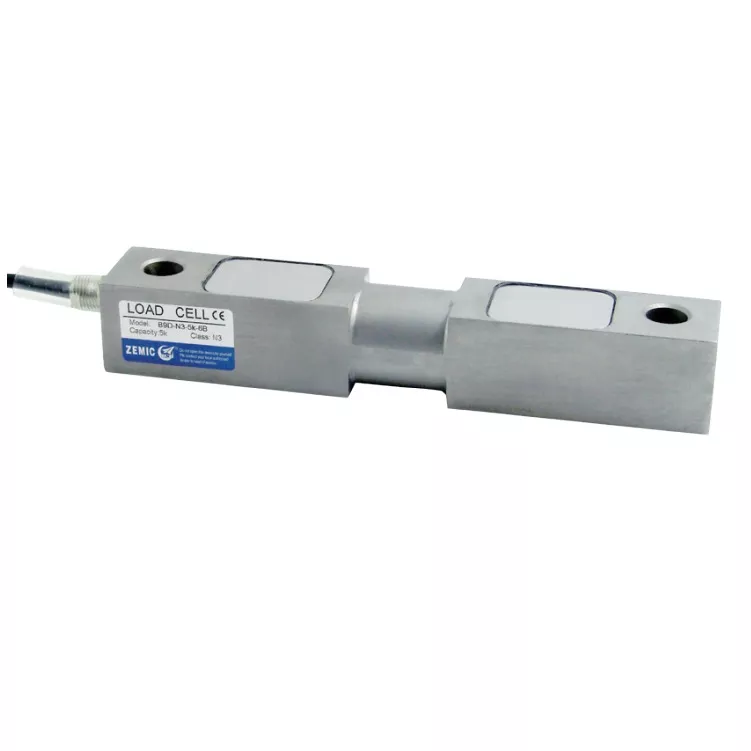

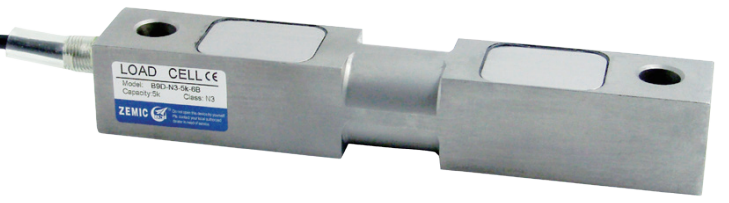

H9D Dual Shear Beam Load Cell Zemic Load Cell

Short Description:

◎Nickel plated alloy steel IP67 dual shear beam load cell；

◎High accuracy；

◎Suitable for truck and track scales and other heavy weighing devices；

◎Sealed construction；

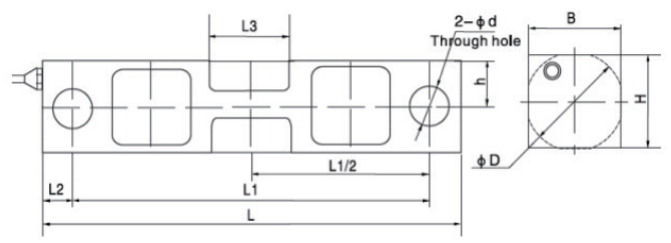

Dimensions in mm：

Available models：

Specification：

Accuracy class		N3	OIML R60 C3	OIML R60 C4	OIML R60 C5
Output sensitivity ( = FS )	mV/V	3.0 ± 0.008
Maximum capacity ( Emax )	klb	1,1.5,2,2.5,4,5,10,15	20,25,35,50,75
Maximum number of load cell intervals ( nLC )		3000		4000	5000
Ratio of minimum LC verification interval Y = Emax / vmin		10000		15000	20000
Combined error	%FS	± 0.023		± 0.0175	± 0.0140
Minimum dead load	of Emax	0 %
Safe overload	of Emax	150 %
Ultimate overload	of Emax	300 %
Zero balance	%FS	± 1.0
Excitation, recommended voltage	V	5 ~ 12( DC )
Excitation maximum	V	18( DC )
Input resistance	Ω	700 ± 7
Output resistance	Ω	703 ± 4
Insulation resistance	MΩ	≥ 5000 ( 50VDC )
Compensated temperature	℃	-10 ~+40
Operating temperature	℃	-35 ~ +65
Storage temperature	℃	-40 ~ +70
Element material		Nickel plated alloy steel
Ingress protection (according to EN 60529)		IP67
ATEX classification (optional)		II1G Ex ia IIC T4	II1D Ex iaD 20 T73℃ C		II3G Ex nL IIC T4

Wiring：

◎Shielded, 4 conductor cable；

◎Cable diameter: Φ5mm；

◎Standard cable length: 6m；

◎Shield not connected to element；

Zemic / H9D Dual Shear Beam Load Cell Zemic Load Cell
