Zemic / H9N Dual Shear Beam Load Cell
Availability:
In Stock
Brand: ZEMIC

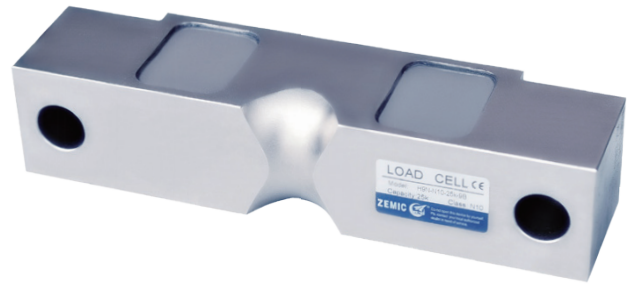

H9N Dual Shear Beam Load Cell ZEMIC Load Cell
Product Description
Short Description:
◎Alloy steel IP67dual shear beam load cell；
◎High accuracy；
◎Suitable for track and truck scales and other weighing devices；
Available models：
| Capacity |
Accuracy |
Full article description |
| 25klb |
D3 |
H9N-D3-25K-9B |
| 40Klb |
D3 |
H9N-D3-40K-9B |
| 50Klb |
D3 |
H9N-D3-50K-9B |
| 60Klb |
D3 |
H9N-D3-60K-9B |
| 75Klb |
D3 |
H9N-D3-75K-9B |
| 100Klb |
D3 |
H9N-D3-100K-9B |
| 125Klb |
D3 |
H9N-D3-125K-9B |
| 150Klb |
D3 |
H9N-D3-150K-9B |
| 200Klb |
D3 |
H9N-D3-200K-9B |
Specification：
| Accuracy class |
|
D3 |
| Output sensitivity ( = FS ) |
mV/V |
3.0 ± 0.003 |
| Maximum capacity ( Emax ) |
klb |
25, 40, 50, 60, 75, 100, 125, 150, 200 |
| Maximum number of load cell intervals ( nLC ) |
|
10000 |
| Ratio of minimum LC verification interval Y = Emax / vmin |
|
7500 |
| Combined error |
%FS |
± 0.03 |
| Safe overload |
of Emax |
150 % |
| Ultimate overload |
of Emax |
300 % |
| Zero balance |
%FS |
± 1.0 |
| Excitation, recommended voltage |
V |
5 ~ 12( DC ) |
| Excitation maximum |
V |
18( DC ) |
| Input resistance |
Ω |
700 ± 7 |
| Output resistance |
Ω |
703 ± 4 |
| Insulation resistance |
MΩ |
≥ 5000 ( 50VDC ) |
| Compensated temperature |
℃ |
-10 ~+40 |
| Operating temperature |
℃ |
-35 ~+65 |
| Element material |
|
Alloy steel |
| Ingress protection (according to EN 60529) |
|
IP67 |
| ATEX classification (optional) |
|
II1G Ex ia IIC T4 |
II1D Ex iaD 20 T73℃ C |
II3G Ex nL IIC T4 |

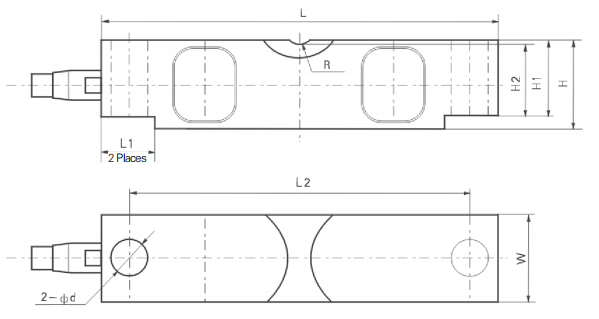

Dimensions in mm：
Dimension
Capacity |
L |
L1 |
L2 |
H |
H1 |
H2 |
Φd |
W |
R |
| 25klb |
197 |
35 |
165 |
49.3 |
43.2 |
41.4 |
Φ17.3 (0.68) |
43 |
R19.1 (0.75) |
| (7.75) |
(1.38) |
(6.50) |
(1.94) |
(1.70) |
(1.63) |
(1.70) |
| 40klb |
260.4 |
49 |
216 |
62 |
53.3 |
50.8 |
Φ20.6 (0.81) |
49.3 |
R25.4 (1.0) |
| (10.25) |
(1.93) |
(8.50) |
(2.44) |
(2.10) |
(2.00) |
(1.90) |
| 50~75klb |
260.4 |
49 |
216 |
74.7 |
67.3 |
64.5 |
Φ26.9 (1.06) |
62 |
R25.4 (1.0) |
| (10.25) |
(1.93) |
(8.50) |
(2.94) |
(2.65) |
(2.54) |
(2.44) |
| 100~125klb |
387.4 |
79.5 |
324 |
98 |
87.1 |
83.8 |
Φ41.2 (1.62) |
73.7 |
R38.1 (1.5) |
| (15.25) |
(3.13) |
(12.76) |
(3.86) |
(3.43) |
(3.30) |
(2.90) |
| 150~200klb |
489 |
127.8 |
387.4 |
147.3 |
130.1 |
112.8 |
Φ41.2 (1.62) |
96.5 |
R50.8 (2.0) |
| (19.25) |
(5.03) |
(15.25) |
(5.80) |
(5.12) |
(4.44) |
(3.80) |
Wiring：
◎Shielded, 4 conductor cable；
◎Standard cable length: 9m；
◎Cable type and length for customer’s own application are available on request；
◎Shield connected to body；
