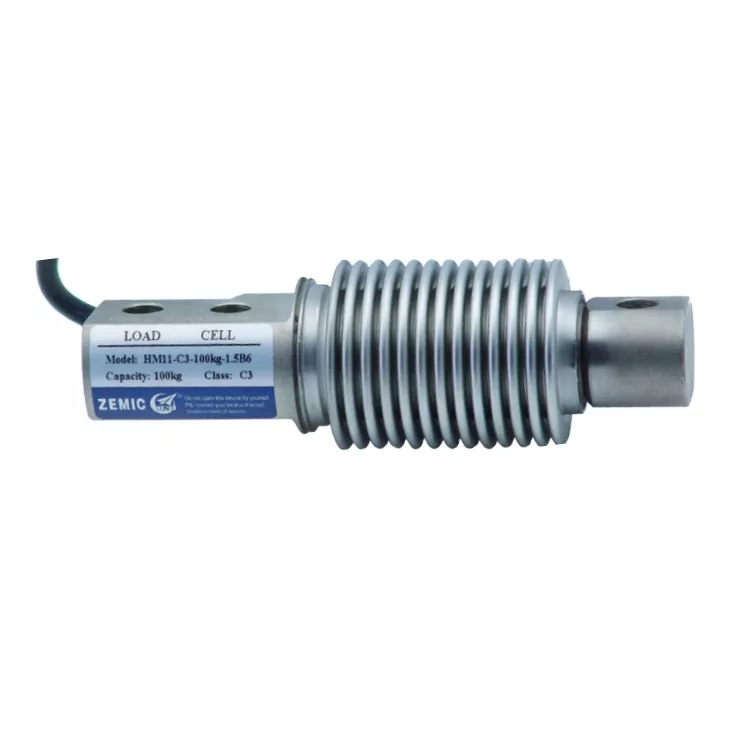

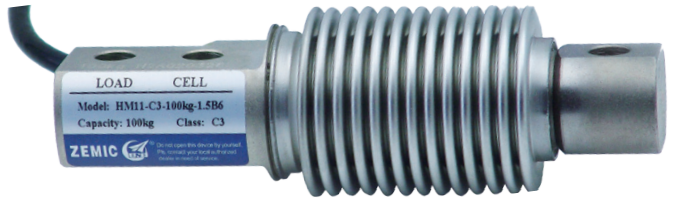

Short Description:
◎Alloy steel, nickel-plated, single point bending beam, hermetically welded, tension or compression；
◎Ingress protection (according to EN 60529): IP68；
◎Suitable for belt scales, hopper scales and other electronic weighing devices；
Available models：
| Capacity |
Accuracy |
Full article description |
| xxkg |
C3 |
HM11-C3-xxkg-3B |
| xxkg |
C3 |
HM11-C3-xxkg-6B6 |
Specification：
| Maximum capacity ( Emax ) |
kg |
5/10/20/30/50/75/100/150/200/250/300/350/400/500 |
| Accuracy class |
|
C3 |
| Maximum number of verification intervals |
N.max |
3000 |
| Maximum number of load cell intervals ( nLC ) |
Vmin |
Emax/10000 |
| Combined error |
%FS |
±0.020 |
| Creep |
%FS/30min |
±0.016 |
| Temperature effect on sensitivity |
%FS/10℃ |
±0.011 |
| Temperature effect on zero |
%FS/10℃ |
±0.015 |
| Output sensitivity ( = FS ) |
mV/V |
2.0±0.02 |
| Input resistance |
Ω |
460±50 |
| Output resistance |
Ω |
350±3.5 |
| Insulation resistance |
MΩ |
≥ 5000(50VDC) |
| Zero balance |
%FS |
±1.0 |
| Compensated temperature |
℃ |
-10~+40 |
| Operating temperature |
℃ |
-35~+65 |
| Excitation, recommended voltage |
V |
5~12(DC) |
| Excitation maximum |
V |
18(DC) |
| Safe overload |
of Emax |
150 |
| Ultimate overload |
of Emax |
300 |
| ATEX Class(Optional) |
|
II1G Ex ia IIC T4 |
II1D Ex iaD20 T73℃ |
II3G Ex nL II C T4 |

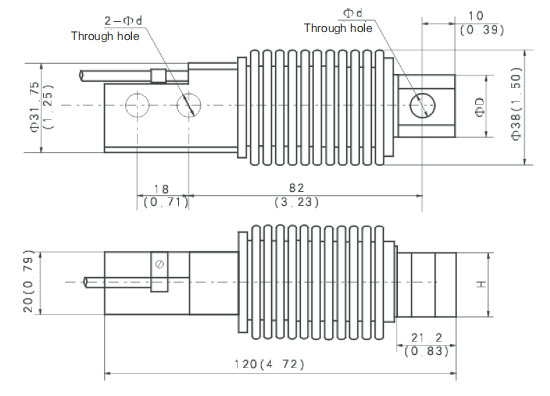

Dimensions in mm：
Capacity(kg)
Dimension |
5,10,20,30,50,75100,150,200,250 |
300,350,400,500 |
| d |
8.2 (0.32) |
10.3 (0.41) |
| D |
23 (0.91) |
24 (0.94) |
| H |
20 (0.79) |
19 (0.75) |
Wiring：
◎Both 4 and 6 conductor wires are available on customer’s requirements；
◎Cable diameter: Φ5±0.2mm；
◎Standard length for 4 conductor cable: 3m；
◎Standard length for 6 conductor cable: 6m；
◎Note: Connection of 6 conductor wires are as above. For 4 conductor wires the yellow and blue sense wires are removed；
