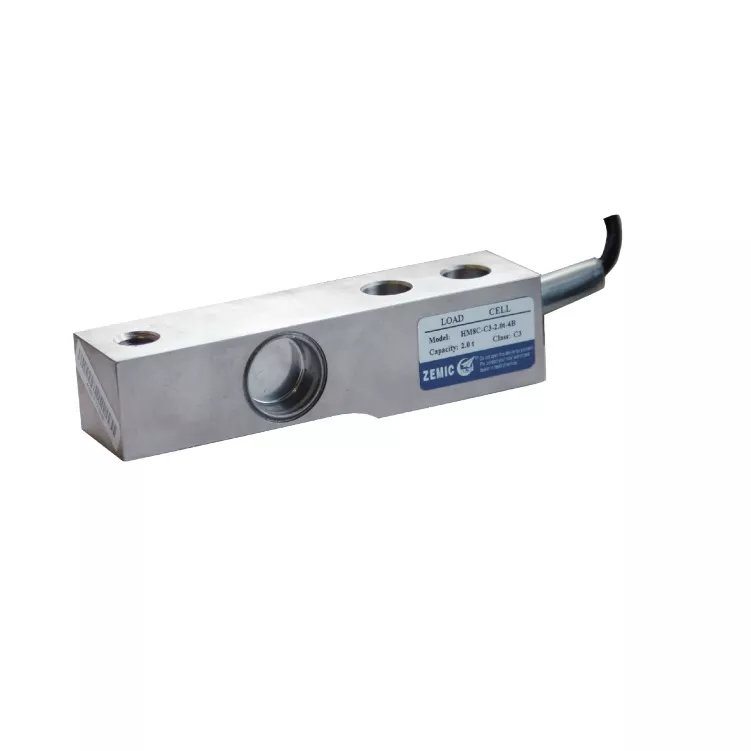

HM8 Load Cell Zemic Shear Beam Load Cells
Product Description
Short Description:
◎Nickel plated alloy steel IP68 shear beam load cell；
◎Hermetically sealed；
◎Suitable for electronic platform scales, hopper scales；
◎High accuracy；

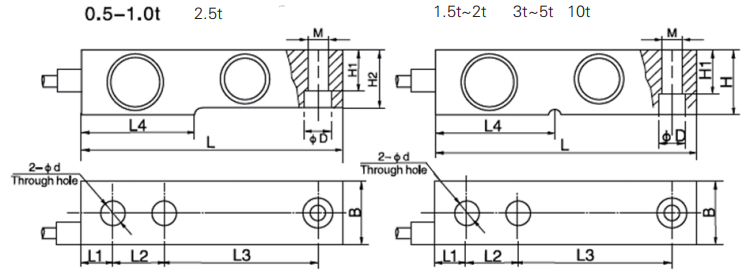

Dimensions in mm：
Dimension
Capacity |
0.5t |
1t |
1.5t-2t |
2.5t |
3t-5t |
10t |
| L |
130 |
(5.12) |
130 |
(5.12) |
130 |
(5.12) |
171.5 |
(6.75) |
171.5 |
(6.75) |
222.3 |
| L1 |
15.8 |
(0.62) |
15.8 |
(0.62) |
15.8 |
(0.62) |
19.1 |
(0.75) |
19.1 |
(0.75) |
25.4 |
(1.00) |
| L2 |
25.4 |
(1.00) |
25.4 |
(1.00) |
25.4 |
(1.00) |
38.1 |
(1.50) |
38.1 |
(1.50) |
50.8 |
(2.00) |
| L3 |
76.2 |
(3.00) |
76.2 |
(3.00) |
76.2 |
(3.00) |
95.3 |
(3.75) |
95.3 |
(3.75) |
120.3 |
(4.74) |
| L4 |
53.7 |
(2.11) |
53.7 |
(2.11) |
54.2 |
(2.13) |
76.2 |
(3.00) |
77.2 |
(3.04) |
101.6 |
(4.00) |
| H |
31.8 |
(1.25) |
31.8 |
(1.25) |
31.8 |
(1.25) |
38.1 |
(1.50) |
38.1 |
(1.50) |
50.8 |
(2.00) |
| H1 |
15.8 |
(0.62) |
15.8 |
(0.62) |
15.8 |
(0.62) |
18.8 |
(0.74) |
18.8 |
(0.74) |
25.4 |
(1.00) |
| H2 |
26 |
(1.02) |
28 |
(1.10) |
– |
34 |
(1.34) |
– |
– |
| B |
31.8 |
(1.25) |
31.8 |
(1.25) |
31.8 |
(1.25) |
38.1 |
(1.50) |
38.1 |
(1.50) |
50.8 |
(2.00) |
| ΦD |
13.5 |
(0.53) |
13.5 |
(0.53) |
13.5 |
(0.53) |
19.8 |
(0.78) |
19.8 |
(0.78) |
26 |
(1.02) |
| Φd |
13.5 |
(0.53) |
13.5 |
(0.53) |
13.5 |
(0.53) |
19.8 |
(0.78) |
19.8 |
(0.78) |
26 |
(1.02) |
| M |
M12 |
M12 |
M12 |
M18 |
M18 |
M24 |
Available models：
| Capacity |
Accuracy |
Full article description |
| 500kg |
C3 Excluded from OIML |
HM8C-C3-500kg-4B |
| 1t |
C3 Excluded from OIML |
HM8C-C3-1t-4B |
| 1.5t |
C3 Excluded from OIML |
HM8C-C3-1.5t-4B |
| 2t |
C3 Excluded from OIML |
HM8C-C3-2t-4B |
| 3t |
C3 Excluded from OIML |
HM8C-C3-3t-4B |
| 5t |
C3 Excluded from OIML |
HM8C-C3-5t-4B |
| 10t |
C3 Excluded from OIML |
HM8C-C3-10t-4B |
Specification：
| Accuracy class |
|
C3 |
| Output sensitivity ( = FS ) |
mV/V |
2.0 ± 0.004 |
| Maximum capacity ( Emax ) |
t |
0.5, 1, 1.5, 2, 3, 5, 10 |
| Maximum number of load cell intervals ( nLC ) |
|
3000 |
| Ratio of minimum LC verification interval Y = Emax / vmin |
|
10000 |
| Combined error |
%FS |
± 0.0230 |
| Minimum dead load |
of Emax |
0% |
| Safe overload |
of Emax |
150 % |
| Ultimate overload |
of Emax |
300 % |
| Zero balance |
%FS |
± 1.5 |
| Excitation, recommended voltage |
V |
5 ~ 12( DC ) |
| Excitation maximum |
V |
18( DC ) |
| Input resistance |
Ω |
350 ± 3.5 |
| Output resistance |
Ω |
351 ± 2.0 |
| Insulation resistance |
MΩ |
≥ 5000 ( 50VDC ) |
| Compensated temperature |
℃ |
-10 ~+40 |
| Operating temperature |
℃ |
-35 ~ +65 |
| Storage temperature |
℃ |
-40 ~ +70 |
| Element material |
|
Nickel plated alloy steel |
| Ingress protection (acc. to EN 60529) |
|
IP68 |
| Recommended torque on fixation |
N.m |
M12: 100 M18:300 M24:750 |
| ATEX classification (optional) |
|
II1G Ex ia IIC T4 |
II1D Ex iaD 20 T73℃ C |
II3G Ex nL IIC T4 |
Wiring：
◎Shielded, 4 conductor cable；
◎Cable diameter: Φ5mm；
◎Standard cable length for 500kg -2t:4m and for 3t – 10t: 6m；
◎Shield not connected to element；
