Short Description:

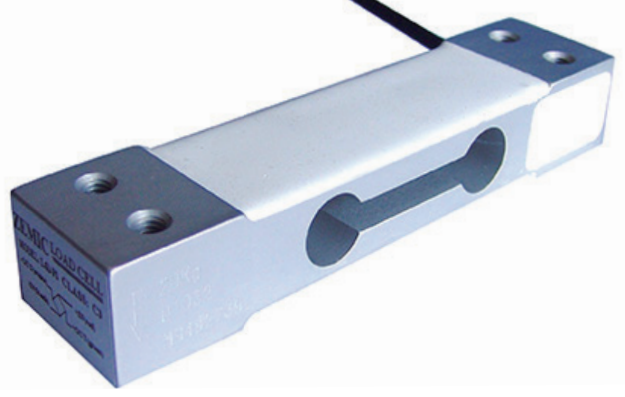

◎Aluminum-alloy IP65 single point load cell；
◎Colourless anodized. High waterproof ability；
◎Suitable for pricing scales, bench scales, etc；
◎Maximum platform size:250*350mm；

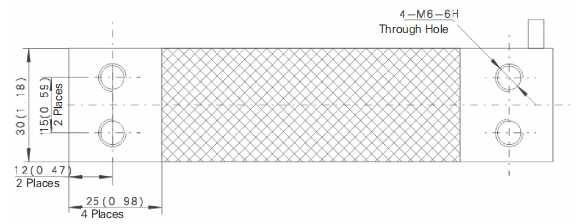

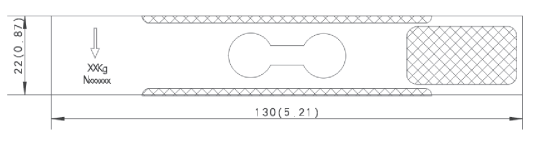

Dimensions in mm：
Available models：
| Capacity |
Accuracy |
Full article description |
| 3kg-50kg |
C3 |
L6D-C3-xxkg-0.45B-FS |
Specification：
| Maximum capacity(Emax) |
kg |
3/5/6/8/10/15/20/25/30/35/40/50 |
| Output sensitivity(= FS) |
mV/V |
2.0+0.2 |
| Accuracy class |
|
C3 |
| Combined error |
%FS |
±0.02 |
| Creep |
%FS/30min |
±0.0167 |
| Temperature effect on sensitivity |
%FS/10℃ |
±0.0175 |
| Temperature effect on zero |
%FS/10℃ |
±0.02 |
| Zero balance |
%FS |
±2 |
| Compensated temperature |
℃ |
-10~+40 |
| Operating temperature |
℃ |
-35~+65 |
| Input resistance |
Ω |
406±6 |
| Output resistance |
Ω |
350±3 |
| Insulation resistance |
MΩ |
≥ 5000(50VDC) |
| Excitation, recommended voltage |
V |
5-12(DC) |
| Excitation maximum |
V |
18(DC) |
| Safe overload |
of Emax |
120% |
| Ultimate overload |
of Emax |
150% |
| ngressprotection (according to EN 60529) |
|
IP65 |
| Recommended installation size |
mm |
250×350 |
| Comer correction |
|
0.02%load value/100mm |
| Recommended torque on fixation |
N.m |
6 |
Wiring：
◎Shielded, 4 conductor cable；
◎Cable diameter: Φ3.8mm；
◎Standard cable length: 0.45m；
◎Shield not connected to element；
◎Cable jacket in PVC；
