Models
FA05-A4
Features
Static accuracy：Resolution 900000
Non-linearity error：≤0.002%FS
Analog input：Max 4 channels analog output(±10V/4~20mA optional)

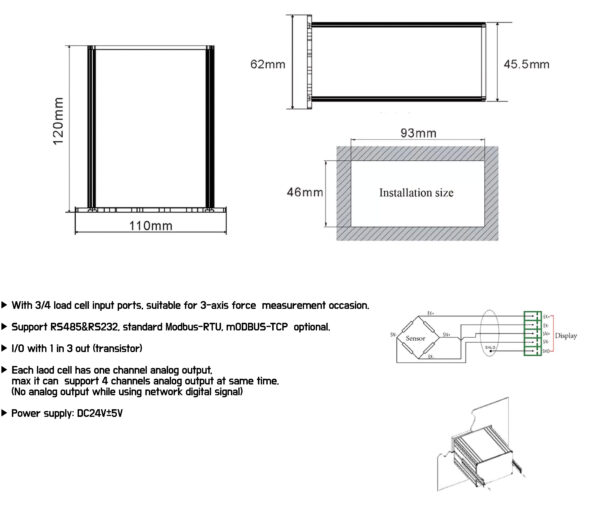

Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Screen | – | 4 channels, 6-bit LED display |
| Scale Interval | – | 1, 2, 5, 10, 20, 50 |
| Max Display Range | – | 999999 |
| Decimal Places | – | 0, 0.0, 0.00, 0.0000, 0.00000 |
| Static Accuracy | – | Resolution: 900000 |
| Max Signal Input Range | mV, mV/V | -30mV ~ +30mV (equivalent to -6mV/V ~ +6mV/V) |
| Temp. Effect (Load Cell) | uV | ≤0.05μV (@0.02mV/V) |
| Temp. Coefficient (Load Cell) | ppm/°C | ≤10ppm/°C |
| Input Resistance | MΩ | ≥20 |
| Non-Linearity Error | %F.S. | ≤0.002 |
| A/D Conversion Speed | t/s | 3200 |
| Temp. Effect (Display) | μV/°C | ≤10 |
| Temp. Coefficient (Display) | %F.S./°C | ≤0.02 |
| Sensor Type | – | 3 strain gauge load cell |
| Excitation Voltage | VDC | 5VDC (Max 4 pcs of 350Ω load cells in parallel) |
| Switch Output | – | 4 channels, transistor output (DC24V, 0.5A) |
| Switch Input | – | 2 channels, transistor input (NPN), 24VDC, 4~6mA |
| Analog Output | – | Max 4 channels (±10V / 4~20mA Optional) |
| Power Supply | VDC | 24V (±5V tolerance) |
| Power Consumption | W | ≤10 |
| Operating Temperature | ℃ | -10 ~ 50 |
| Operating Humidity | %RH | ≤90 (no condensate water) |
