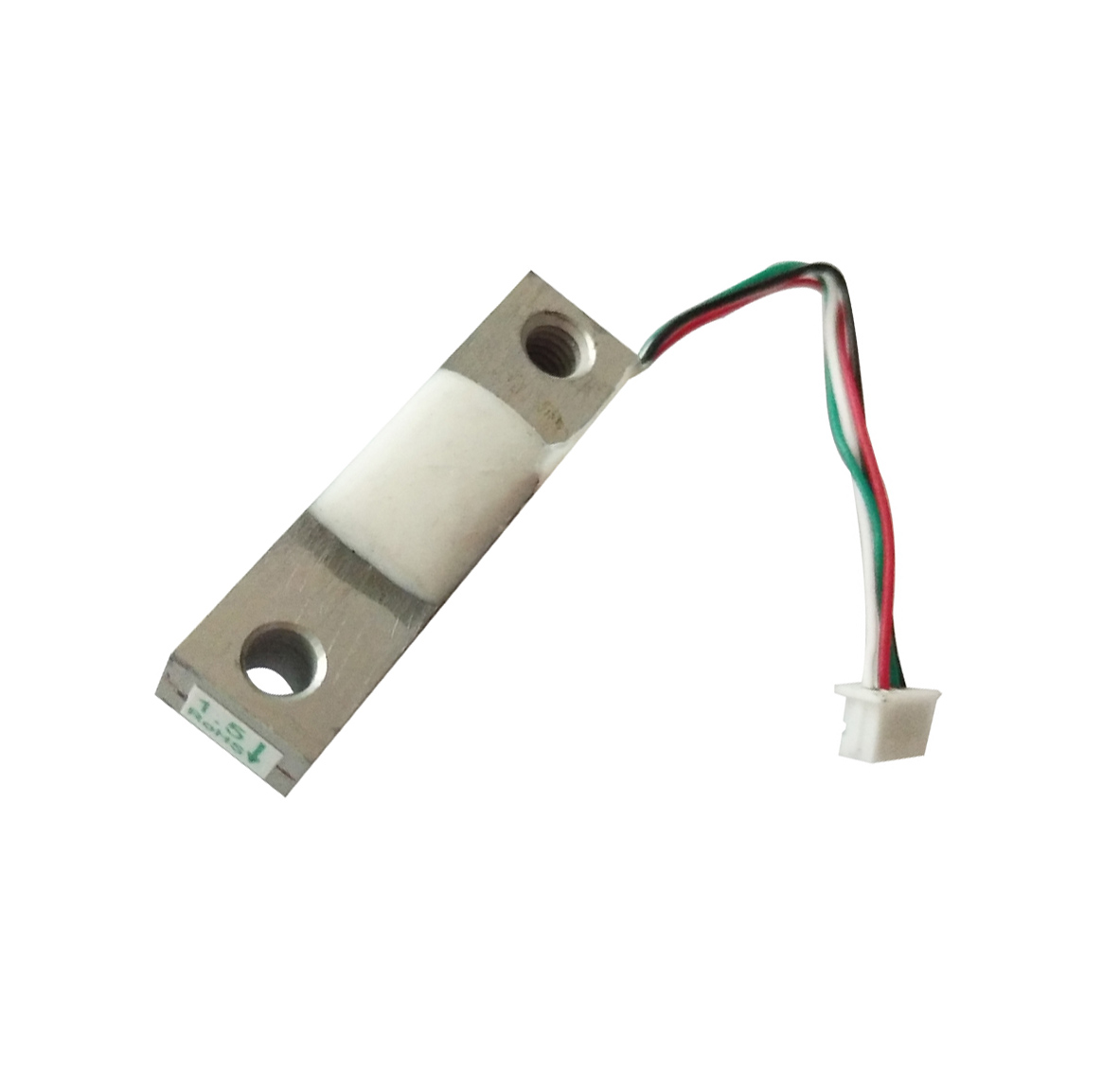

TAL220G Micro load cell with connector
INTRODUCTION:
| Capacity | kg | 1.5, 2, 4 |
| Accuracy | %FS | ± 0.05% |
| Output signal | mV/V | 1.0 ± 0.1 |
| Recommend excitation | Vdc | 3~10Vdc |

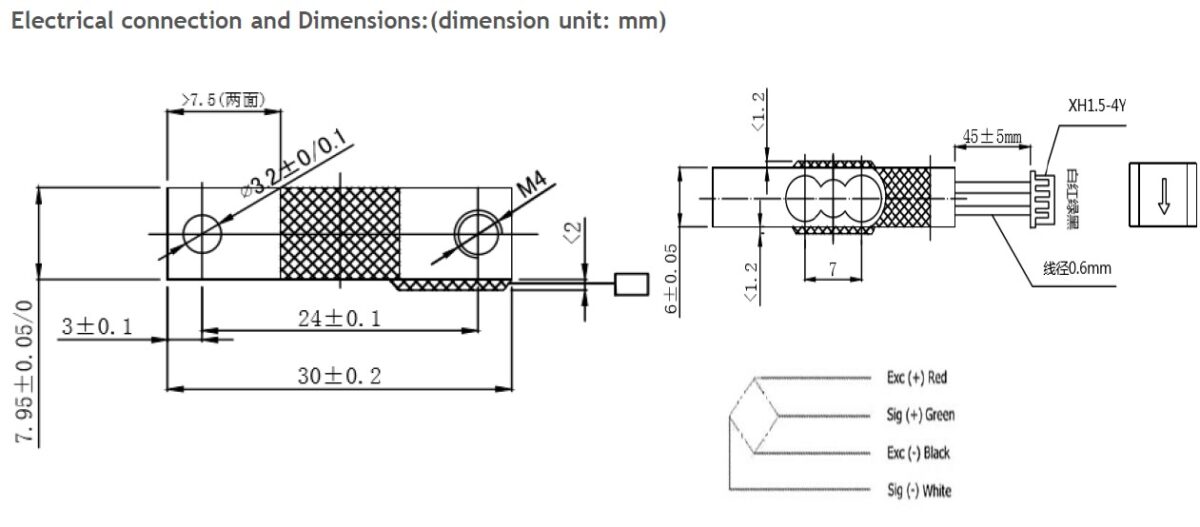

| Electrical connection | Cable | 4 color wire ,Ø0.6×45 mm with connector |
HT SENSOR / TAL220G / Micro load cell with connector
Product description:Features:
Capacity ： 100~750g
Material: aluminum-alloy
Type: Parallel beam type
Defend grade: IP65
Application : body scales, hand scales, kitchen scales,postal scales, fishing scales, baby body scales and other micro electronic weighing systems.
