Features
- 용량：2kg~50T
- 재질 : High-quality aluminum, nickel-plated surface
- 타입 : S Beam Type
- 보호등급 : IP65
- 적용분야 : 푸시풀 포스 게이지 / 풀 스트레스 테스트

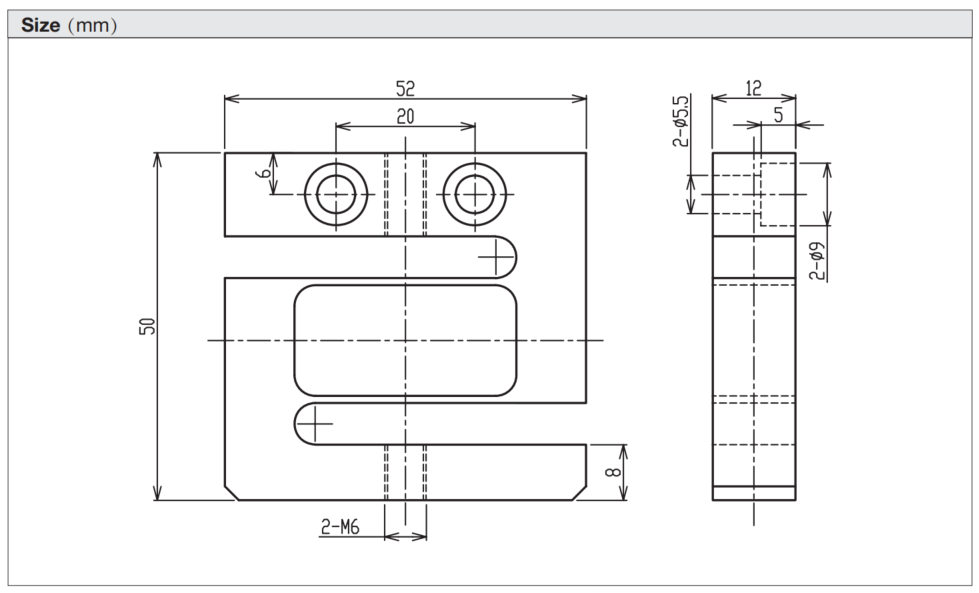

Dimensions
Specifications
Specification | Value | Unit |
Rated load | 2,5,10,20,50 | kg |
Rated output | 1(2kg),2(5-50kg) | mV/V |
Zero balance | ±1 | %R.O. |
Comprehensive Error | ±0.05 | %R.O. |
Repeatability | ±0.05 | %R.O. |
Creep(after 30 minutes) | ±0.05 | %R.O. |
Normal operating temperature range | -10~+40 | ℃ |
Allowable operating temperature range | -20~+70 | ℃ |
Effect of temperature on zero point | ±0.02 | %R.O./10℃ |
Effect of temperature on sensitivity | ±0.02 | %R.O./10℃ |
Recommended excitation voltage | 5-12 | VDC |
Input impedance | 350±5 | Ω |
Output impedance | 350±3 | Ω |
Insulation Resistance | ≥5000(50VDC) | MΩ |
Safe overload | 150 | %R.C. |
Limit overload | 200 | %R.C. |
Material | Aluminum | |
Protection Class | IP65 | |
Cable length | 0.2 | m |
※제품 사양은 예고 없이 변경될 수 있습니다.
