S-type structure, with good output stability and high accuracy; suitable for force testing machine, welding machine, cold and hot pressing film machine, medical equipment and industrial automation measurement and control system.

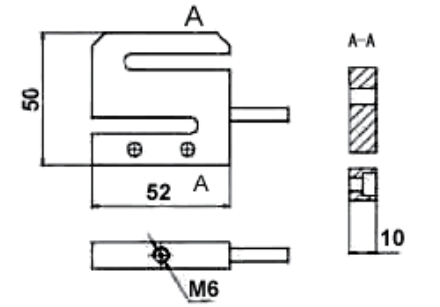

Dimension:
Technical Data:
Capacity
1kg~20kg
Input Impedance
380±10Ω
Rated output
2.0 ±10% mV/V
Output Impedance
350±3Ω
Non-linearity
≤±0.03%F.S
Insulation
>5000MΩ/100VDC
Hysteresis
≤±0.03%F.S
Recommended Excitation
5～12VDC(10VDC)
Repeatability
≤±0.03%F.S
Material
Alloy/Stainless Steel
Creep(30min)
≤±0.05％F.S/30min
Compensated Temp Range
-10~60℃
Temp Effect On Output
≤±0.03％F.S/10℃
Operating Temp Range
-20~80℃
Temp Effect On Zero
≤±0.03％F.S/10℃
Safe Load
1.2
Protection Class
IP65
Ultimate Load Limit
1.5
Product name

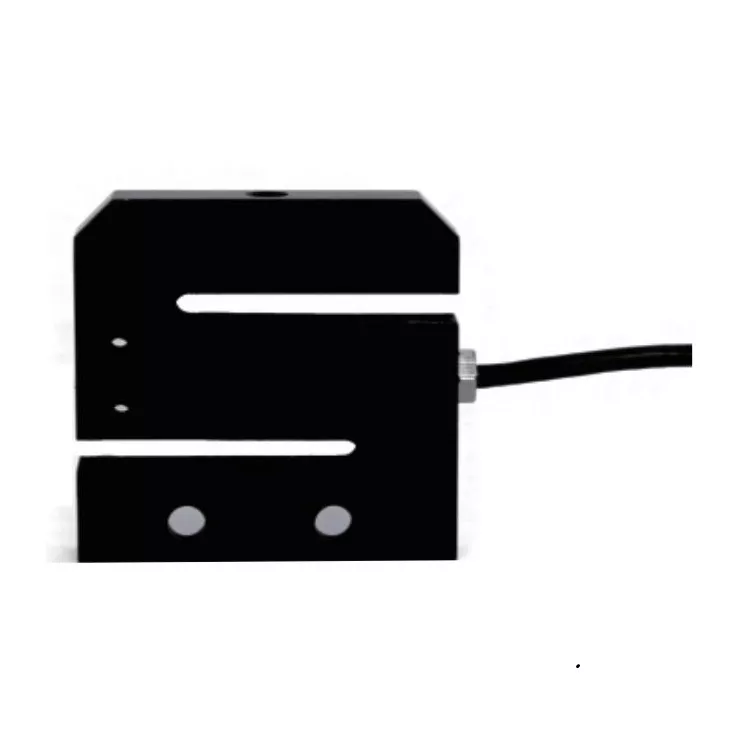

LC2419 Load Cells And Force Transducers Micro S Load Cells & Sensors
Brand
SAINTBOND
Market
All over the world

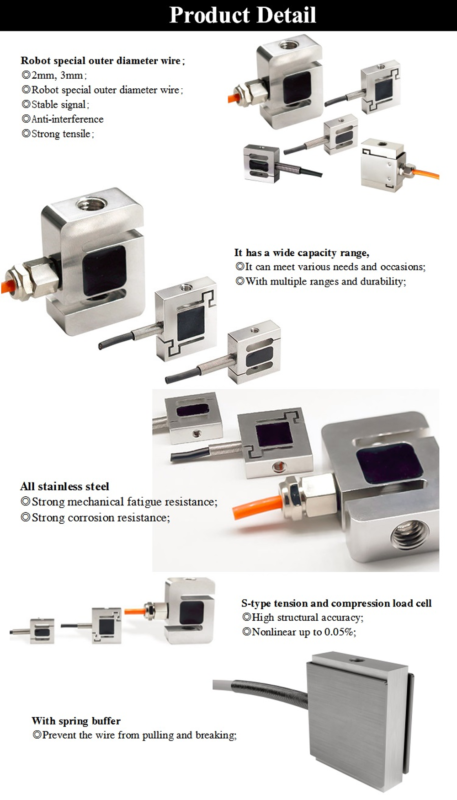

Features
High precision and stable performance
Advantage
0EM/ODM
Sample Lead Time
5~ 40Days
Sample price
The price is different according to product capacity
