SAINTBOND / LC786 Weight Plate Loading Pin Shaft Load Cell Pin Weight
LC786 Weight Plate Loading Pin Shaft Load Cell Pin Weight
Product Description
Product Description:

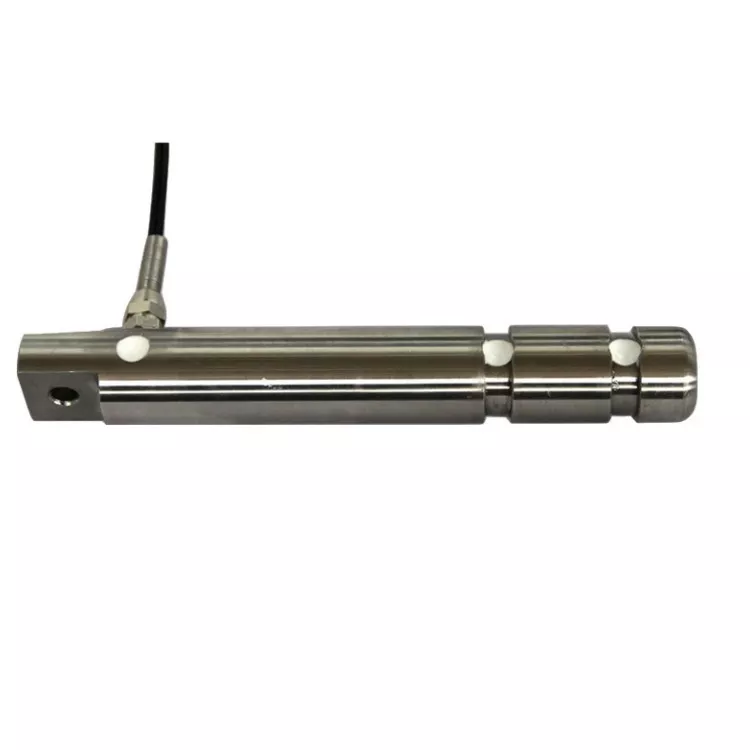

The LC786 pin load cell is made of stainless steel and offers maximum resistance to impacts and overloads. The operation of the LC786 load cell is double-ended shear beam. The LC786 cell is insensitive to side loads and it has been designed for shooting, weighing or anti-overhead systems for overhead cranes. The LC783 pin load cell can be customized.

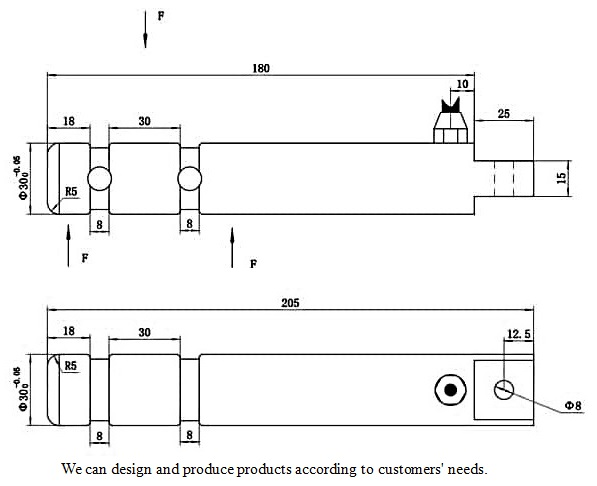

Dimension:in mm
Technical Parameter:
Rated Load:
1~5t
Operating Modes:
Tension/Compression / Tension & Compression
Sensitivity:
1.0~1.5mV/V±0.1 %
Combined Error:
±0.5% F.S
Operating Temp. Range:
-10~+70℃
Creep Error(30min):
±0.05% F.S
Maximum Safe Over Load:
120%F.S
Zero Balance:
±2% F.S
Ultimate Over Load::
200%F.S
Temp. Effect On Zero:
±0.02% F.S/10℃
Recommend Excitation Vol.:
10~12V DC
Temp. Effect On Span:
±0.02% F.S/10℃
Maximum Excitation Vol.:
15V DC
Input Resistance:
380±30Ω/730±30Ω
Sealing Class:
IP67/68
Output Resistance:
350±2Ω/700±3Ω
Element Material:
Alloy /Stainless Steel
Insulation Resistance:
≥5000MΩ
Cable:
Length=L:3m
Product name
LC786 Weight Plate Loading Pin Shaft Load Cell Pin Weight
Brand
SAINTBOND
Market
All over the world
Features
High precision and stable performance
Advantage
0EM/ODM
Sample Lead Time
5~ 40Days
Sample price
The price is different according to product capacity
Custom Design
Welcome
Form of sale
Factory supply
